POWERCUT Plasma Control Software
Operator focused - intuitive - remote connection ready CNC PLASMA interface
Select, load, cut.
The CR PLASMA software system comes as standard with the following features
- Fully integrated controller for movement and setup of the plasma
- Torch height control and operator interface with the Z axis system
- Full error management for proces and plasma issues
- Nesting package
- Integrated process library system to keep track of all the plasma profiles across all the different thickness’s.
- Select, Load. Cut!
A new approach to CNC plasma operation

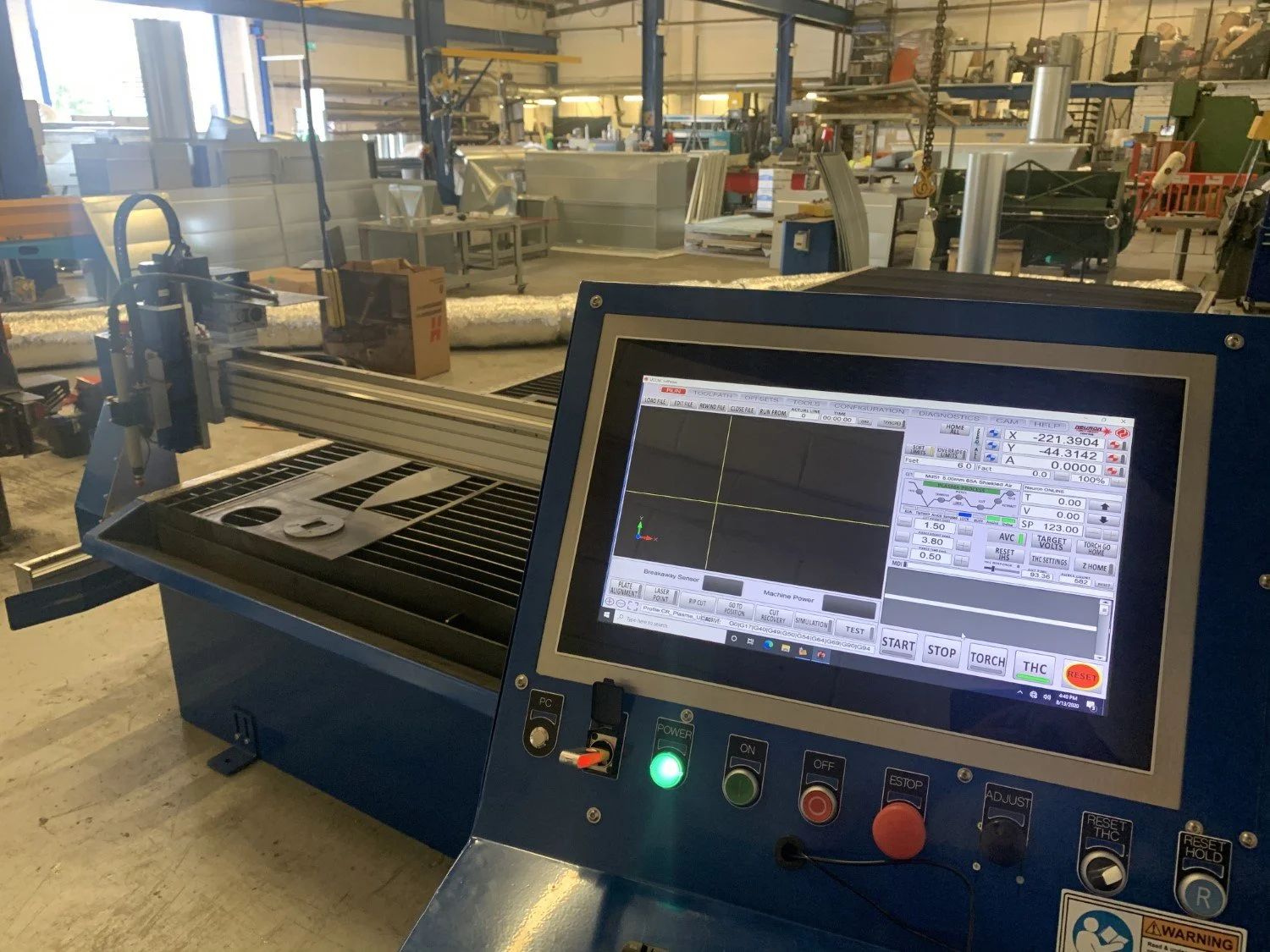

CR PLASMA have integrated a new generation of software control into the POWERCUT range of machines.

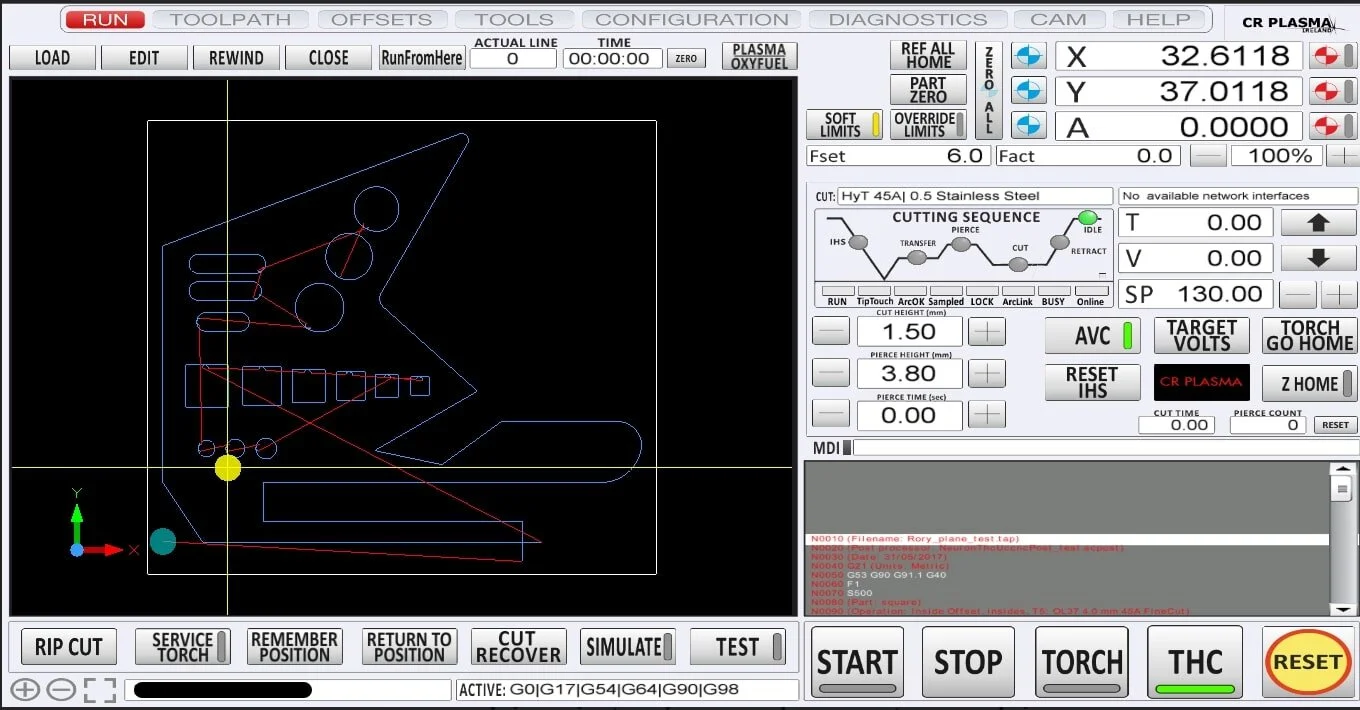

Instant communication to the operator

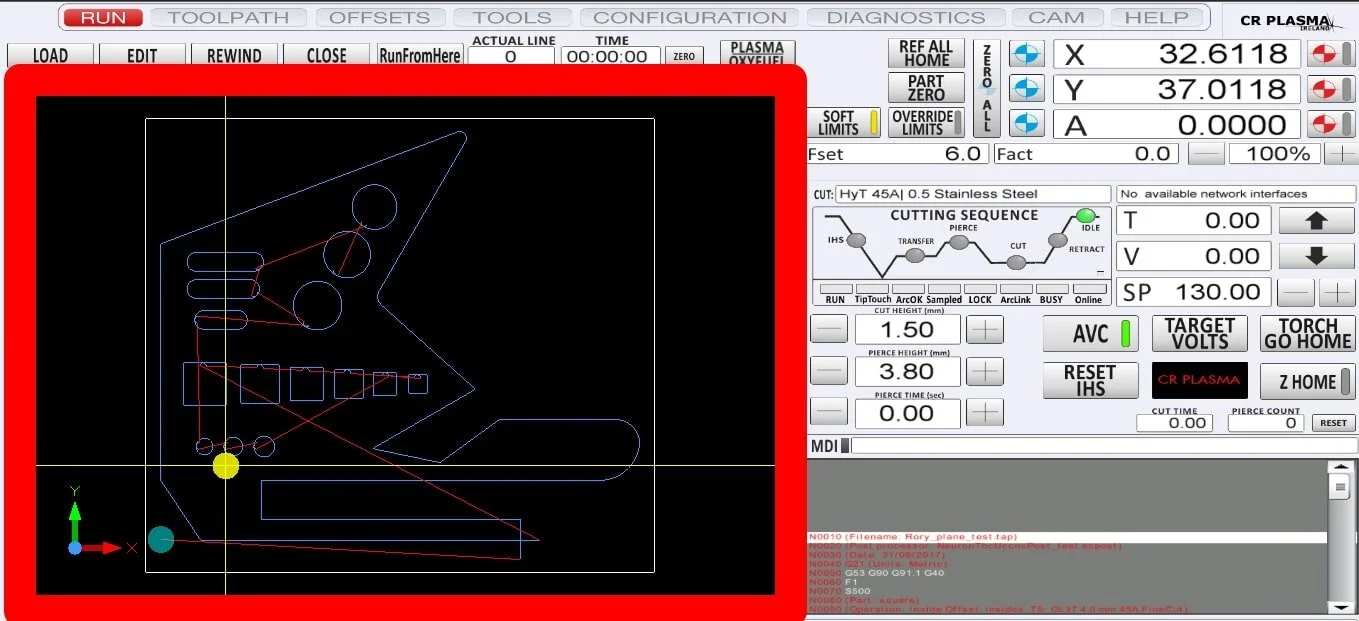

Live interface of exact machine position at all times during setup.
The control software gives the operator live feedback on machine position relative to the sheet loaded on the table. Whether you are nesting large arrays of parts or for making small parts from offcuts the live GUI is invaluable to ensure you always have enough work-piece under the torch.

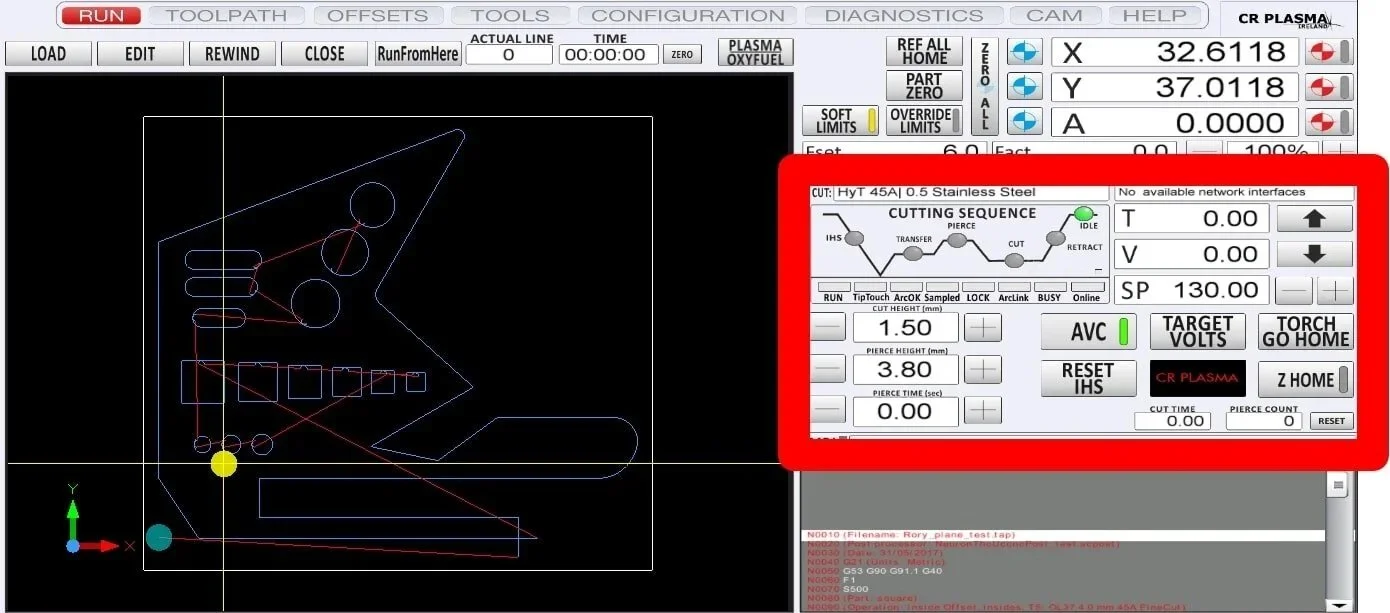

Integrated Torch Height Controller
Live feedback of torch states, cut heights and torch height control status.
On the front panel, the operator has full access to the torch status. The interface panel communicates what the preset cut heights and settings are as well as communicating live status on the height controller and torch setup. The result is a system that allows the operator to see exactly what is going on during the cutting process.

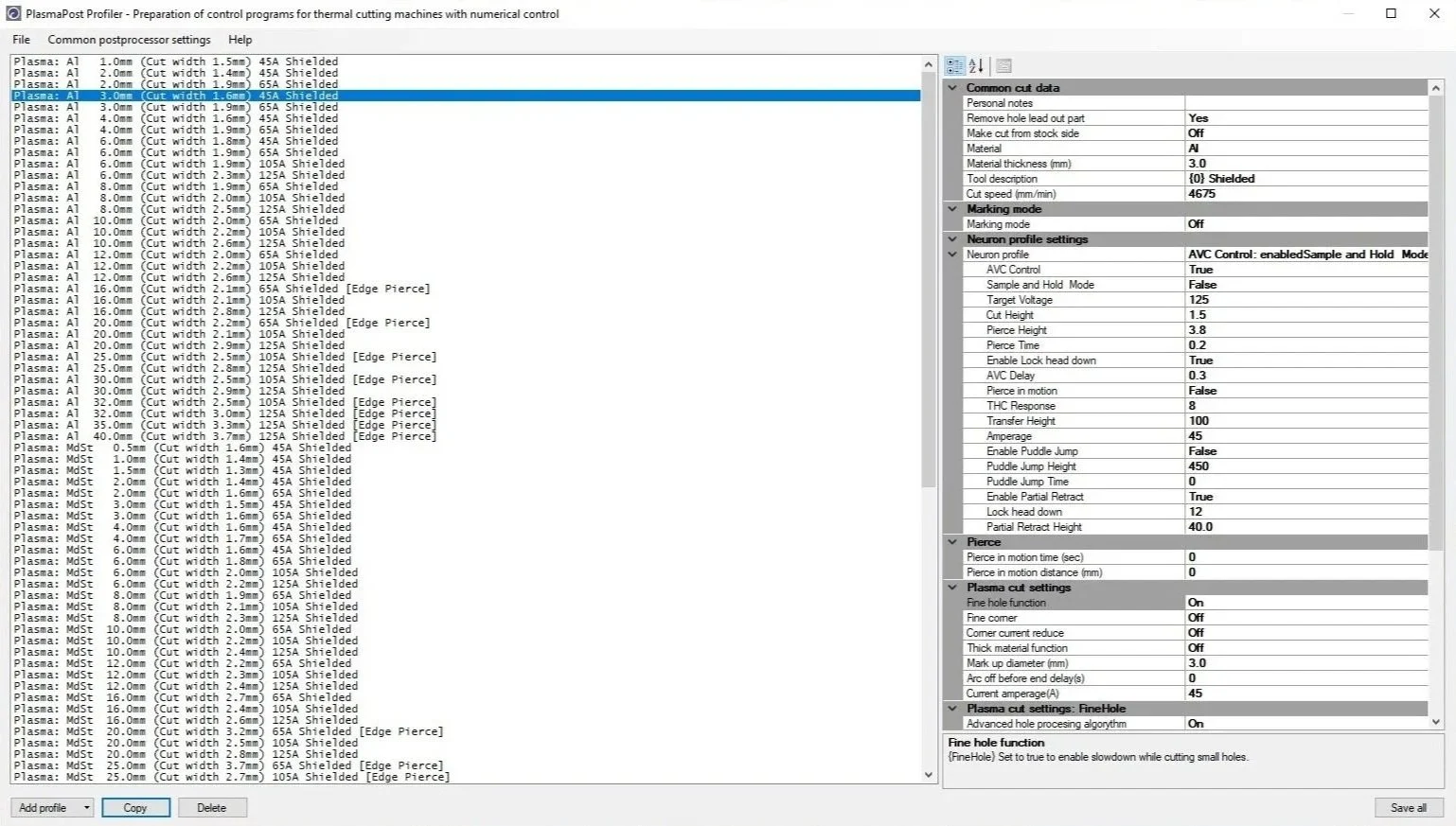

Integrated torch library database
Integrated setting management tool 1 click from front-panel
Integrated into the CNC controller is a database management tool where all the torch settings and steel thickness values and associated parameters can be stored. There are also more complex functions available for high-end advanced work.

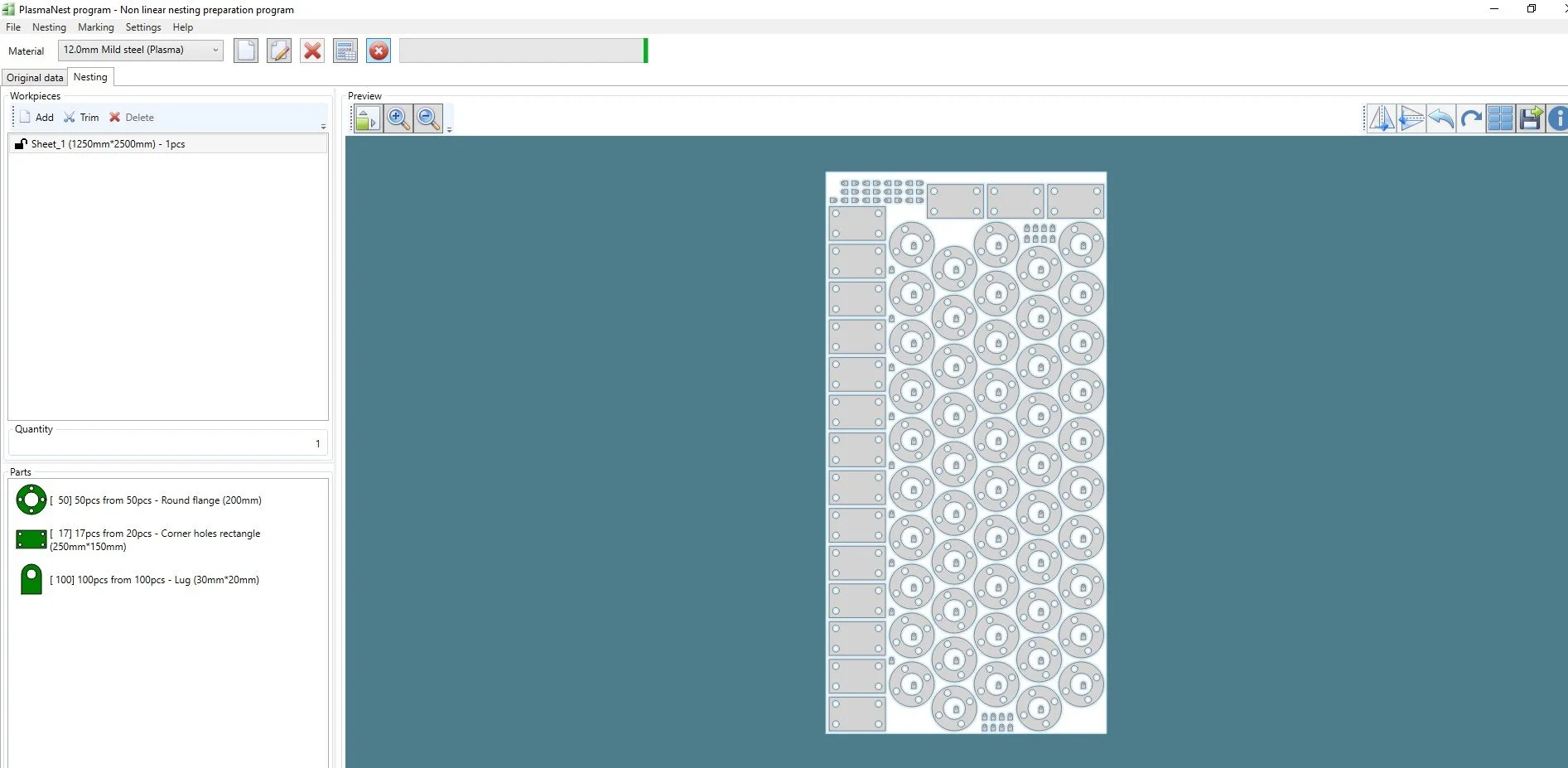

Full Nesting Package to optimise cutting layouts
DXF and NC1 file compatible.
Automatically organise your files and prepare large cutting files for the CNC plasma in seconds.
Multi part nesting, parts in parts, auto rotate, lock rotate, multi sheets, Sheet nest reports, manage all your nesting operations with plasma nest.

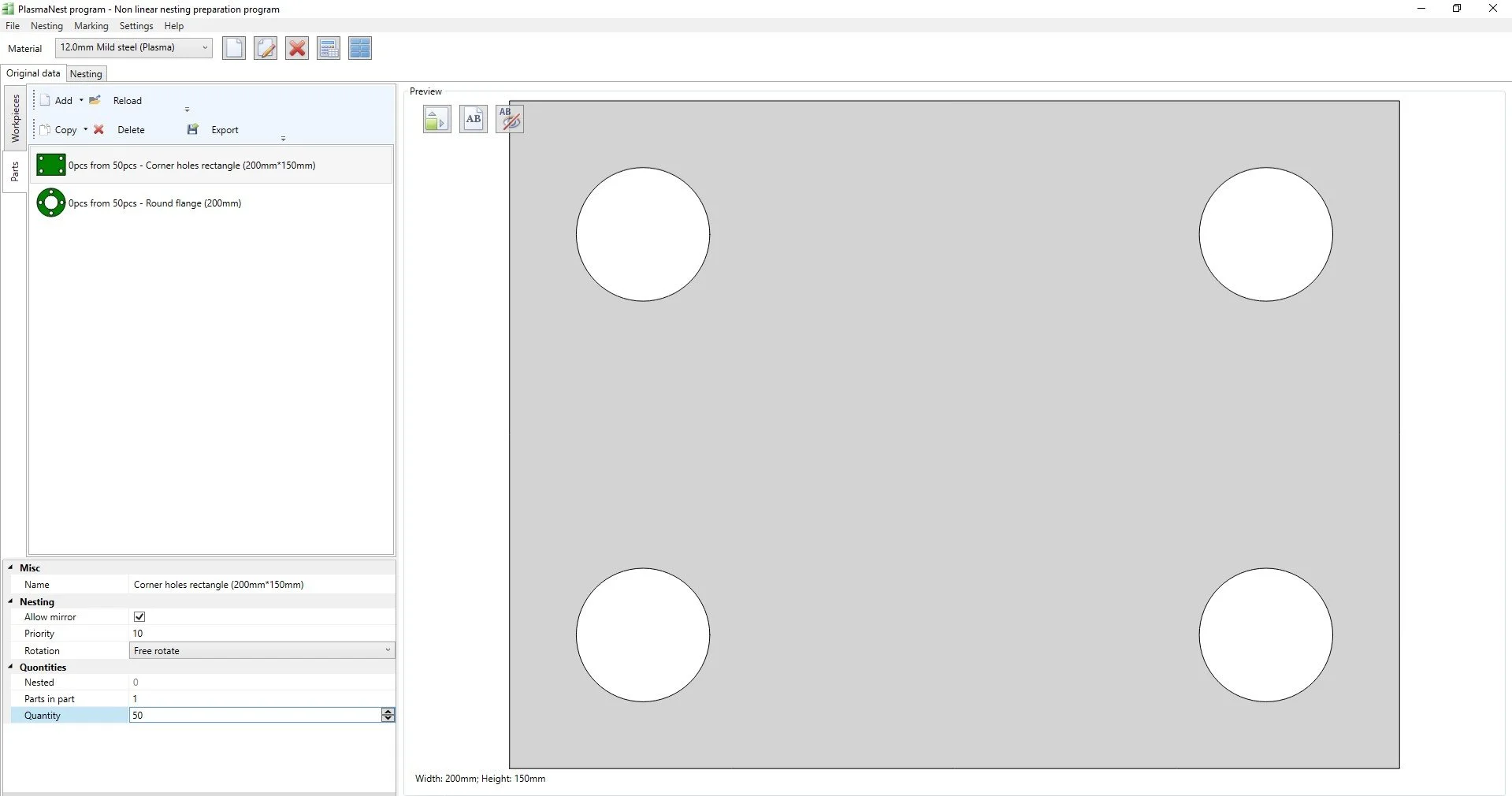

Standard part engine allows fast and effective part generation right at the CNC plasma interface. Make flange plates, lugs, the works in seconds.
Standard part library constantly evolves and is added to every few months.
