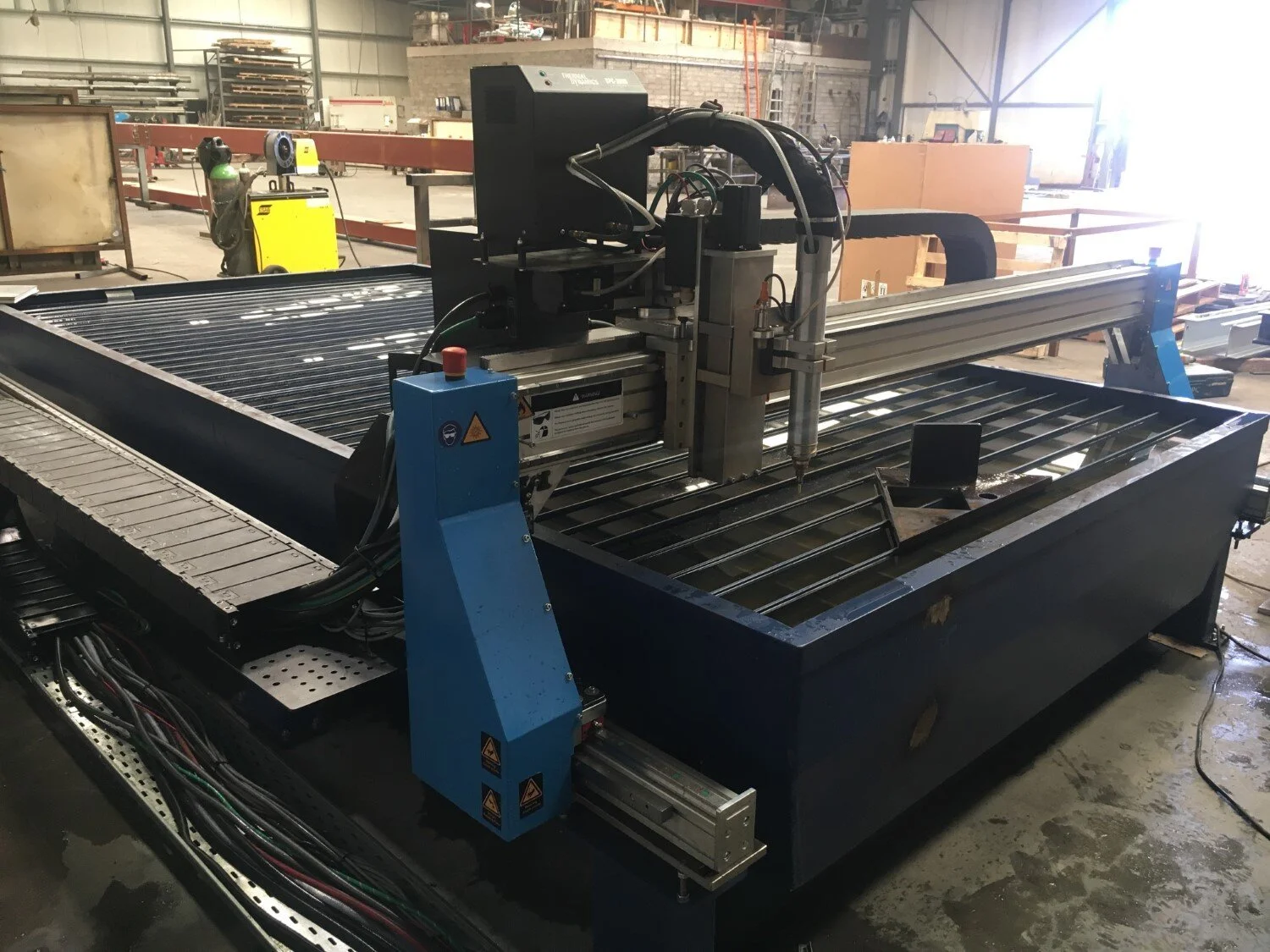

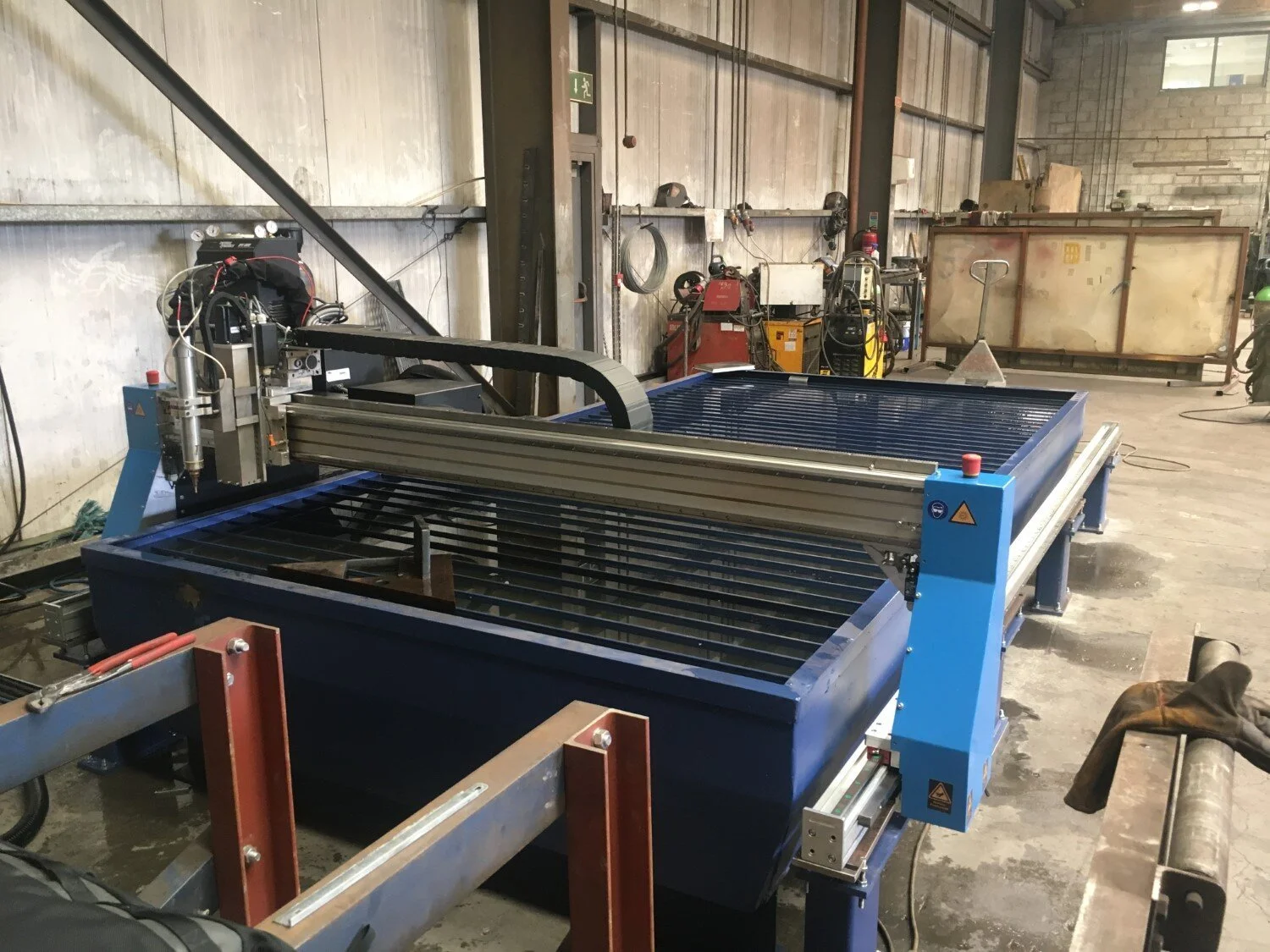

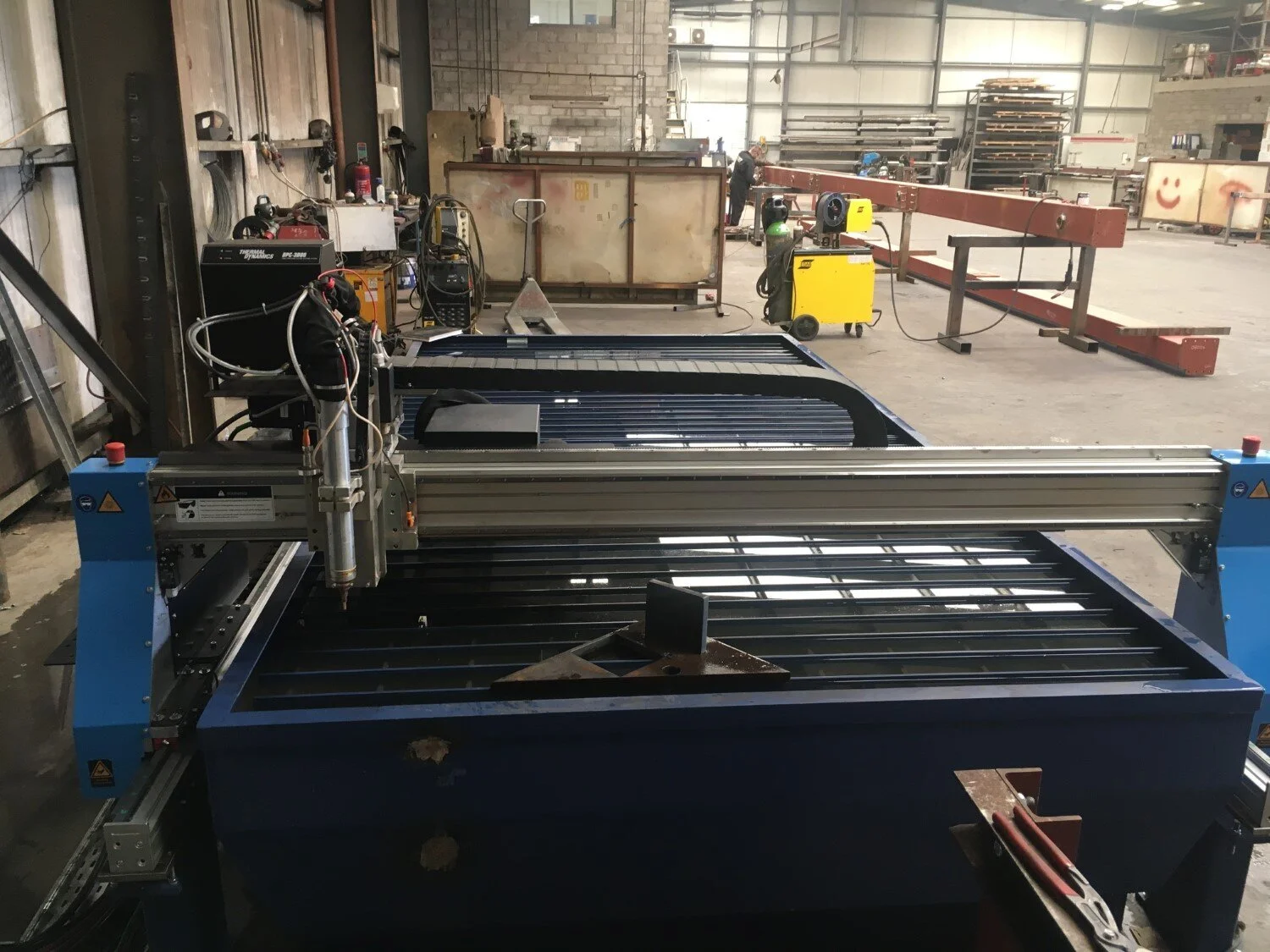

4000 × 2000 Portal Plasma Cutter System

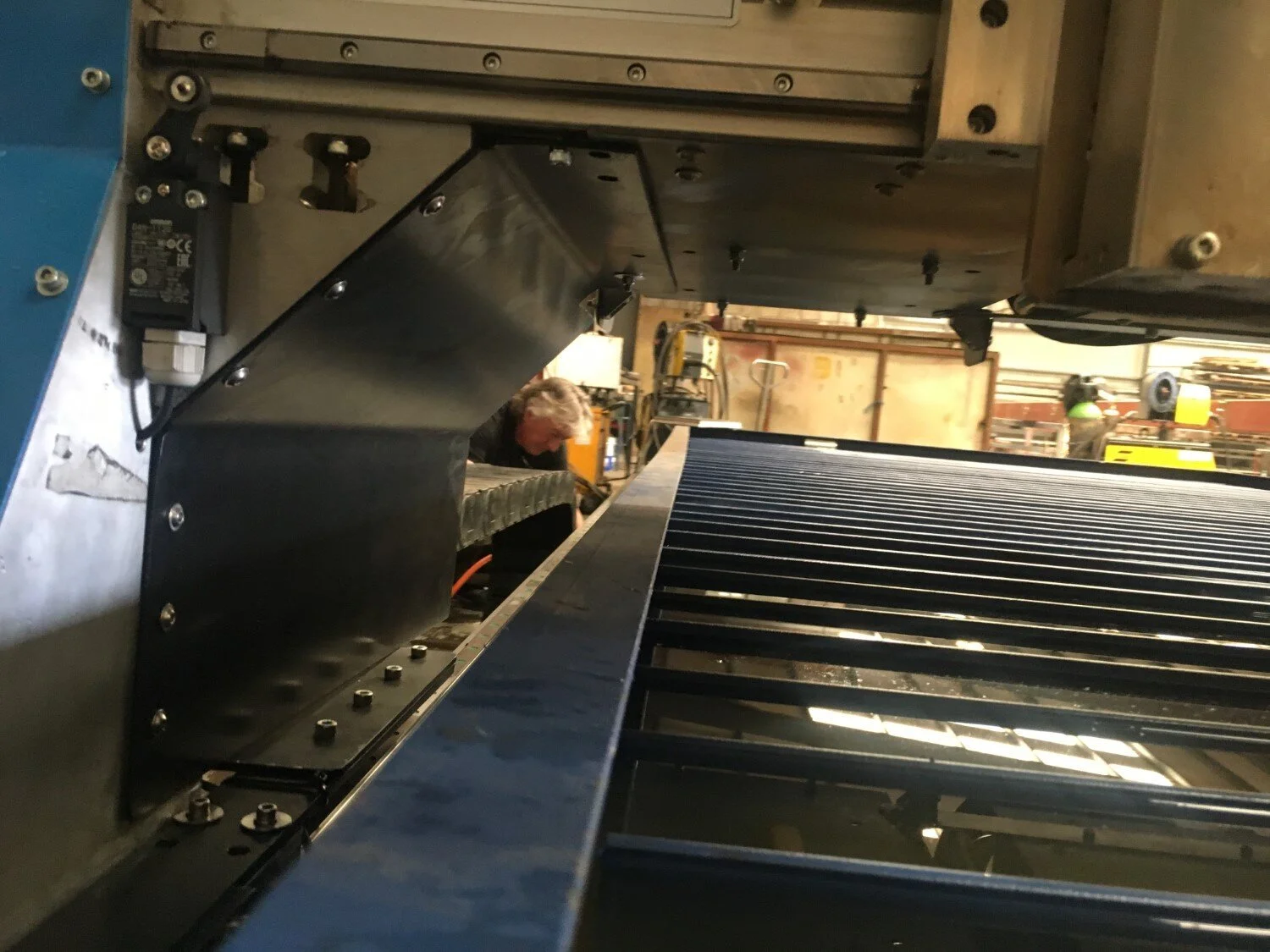

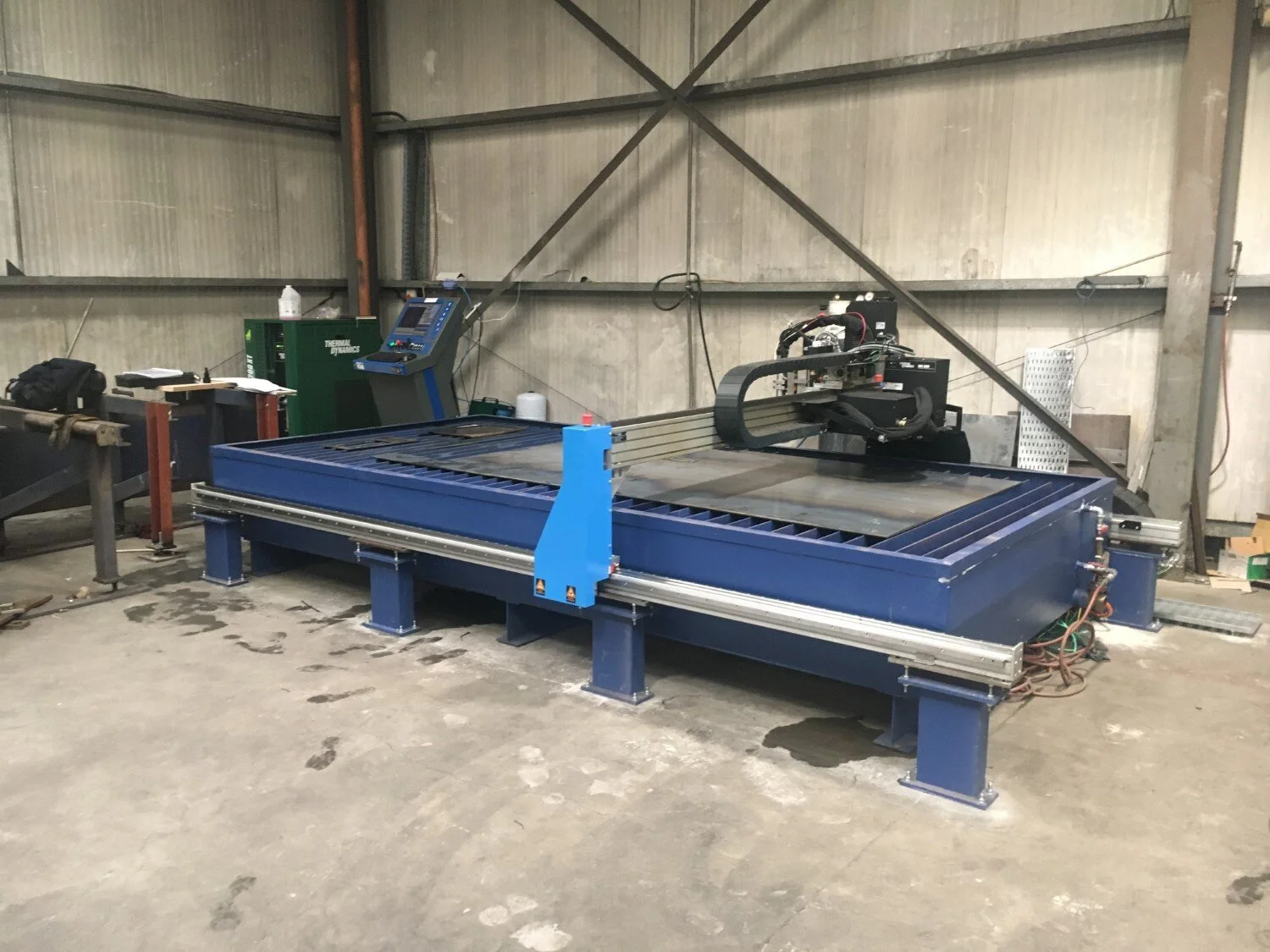

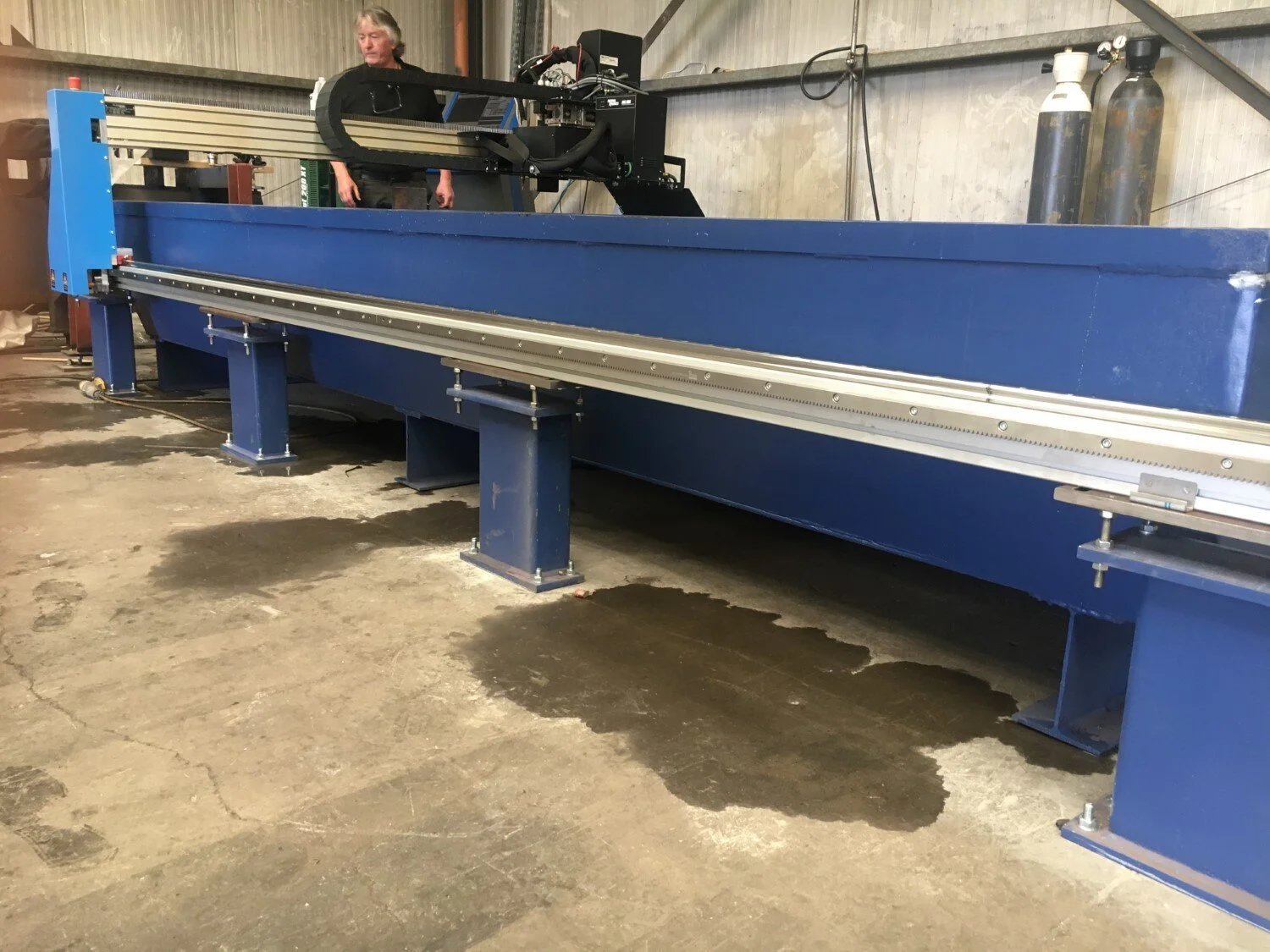

The CR PLASMA 4000 x 2000mm CNC plasma system runs on steel islands that are bolted to the floor of the location where the machine is installed. The top surface of the islands has an adjustment to allow the laser level to align the long lengths that are used to drive the machine along the long axis. The long axis runs on 25mm HIWIN rails and runs with a precision-ground rack and pinion. The result is a very smooth, efficient drive system to move the bridge up and down the machine.
- 4000 x 2000mm machine working area
- Hypertherm 125PMX compatible

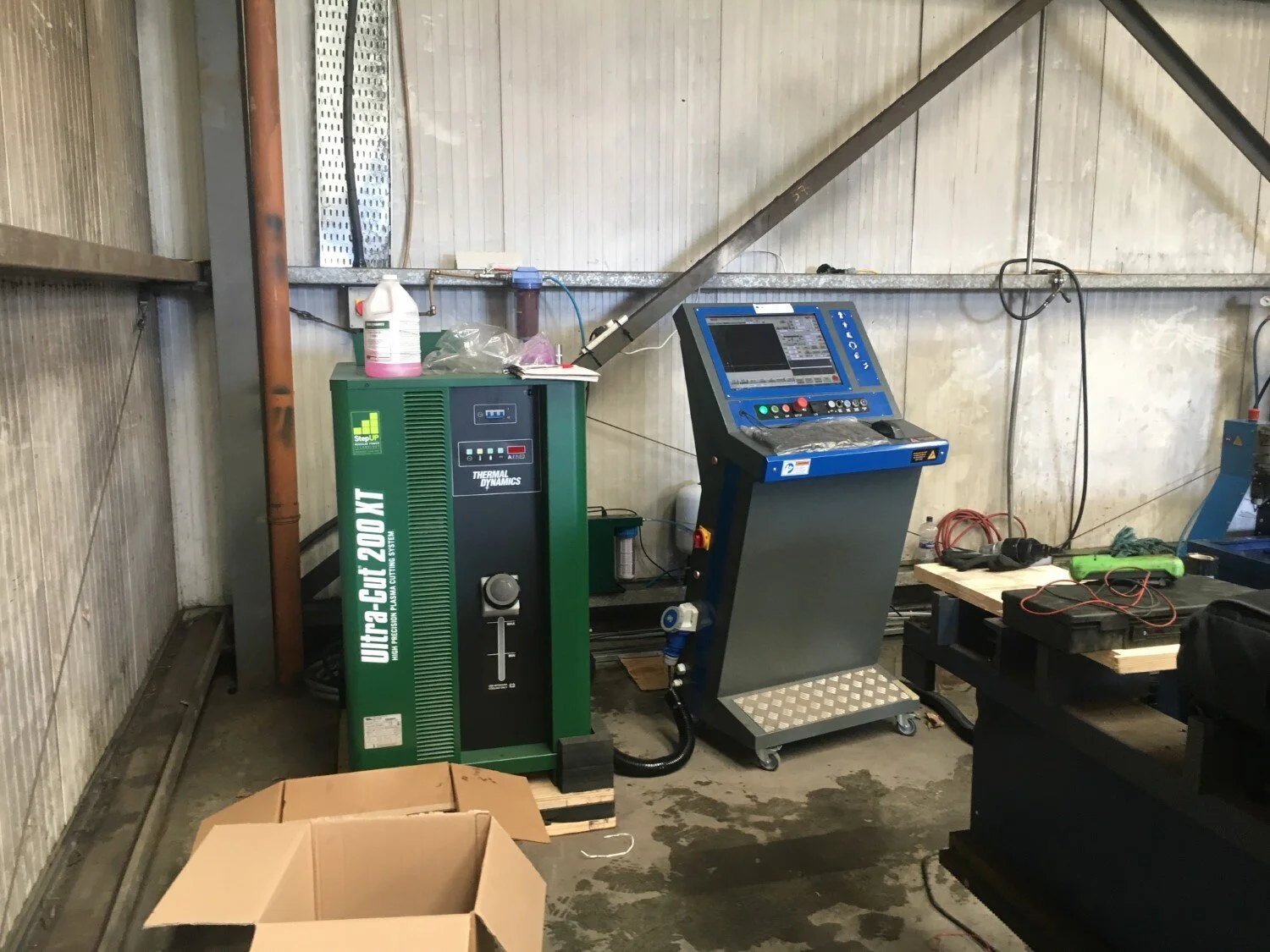

- Thermal Dynamics ULTRA Cut XT compatible.

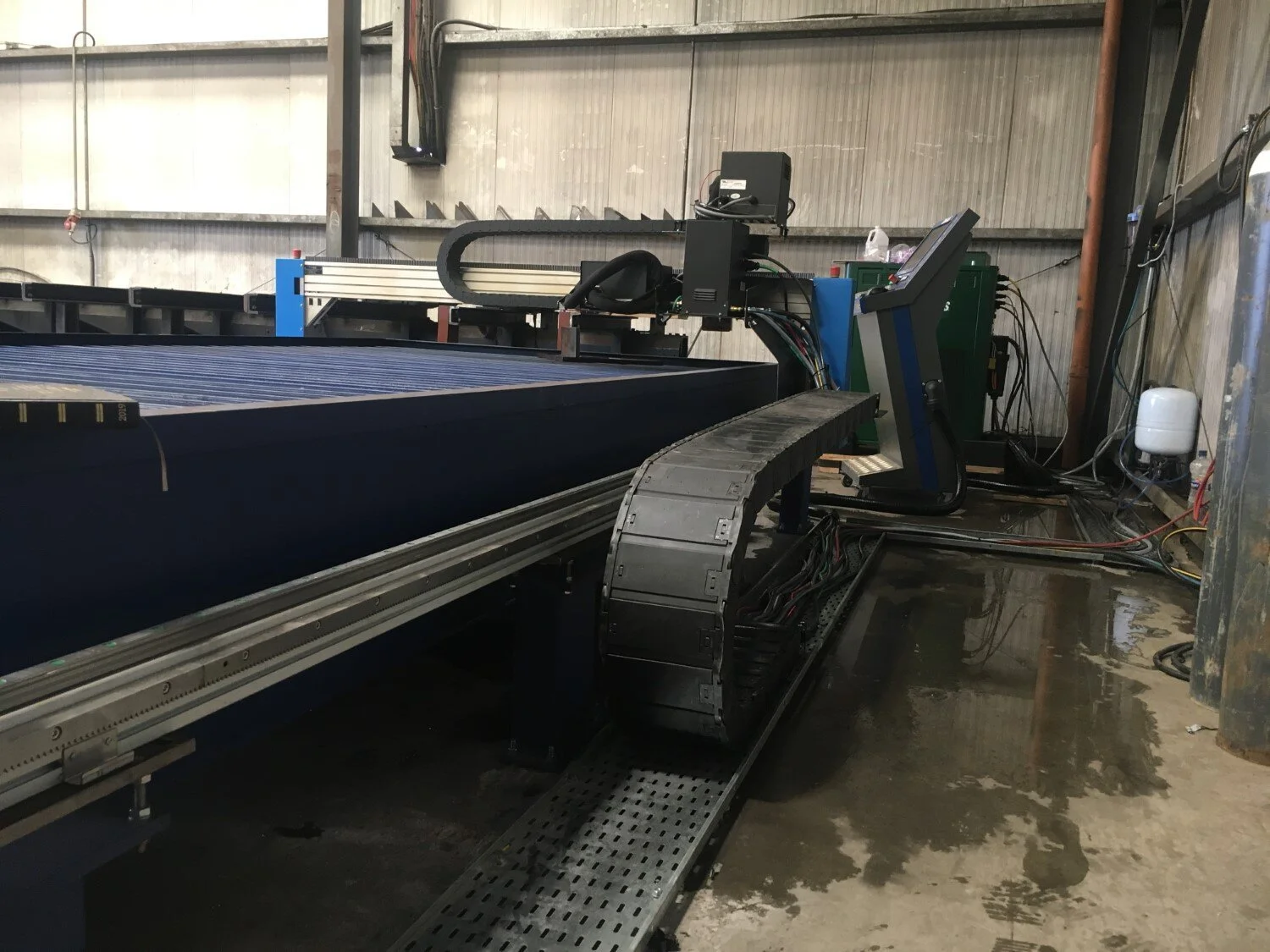

- All cable chain management uses fully sealed chains from IGUS

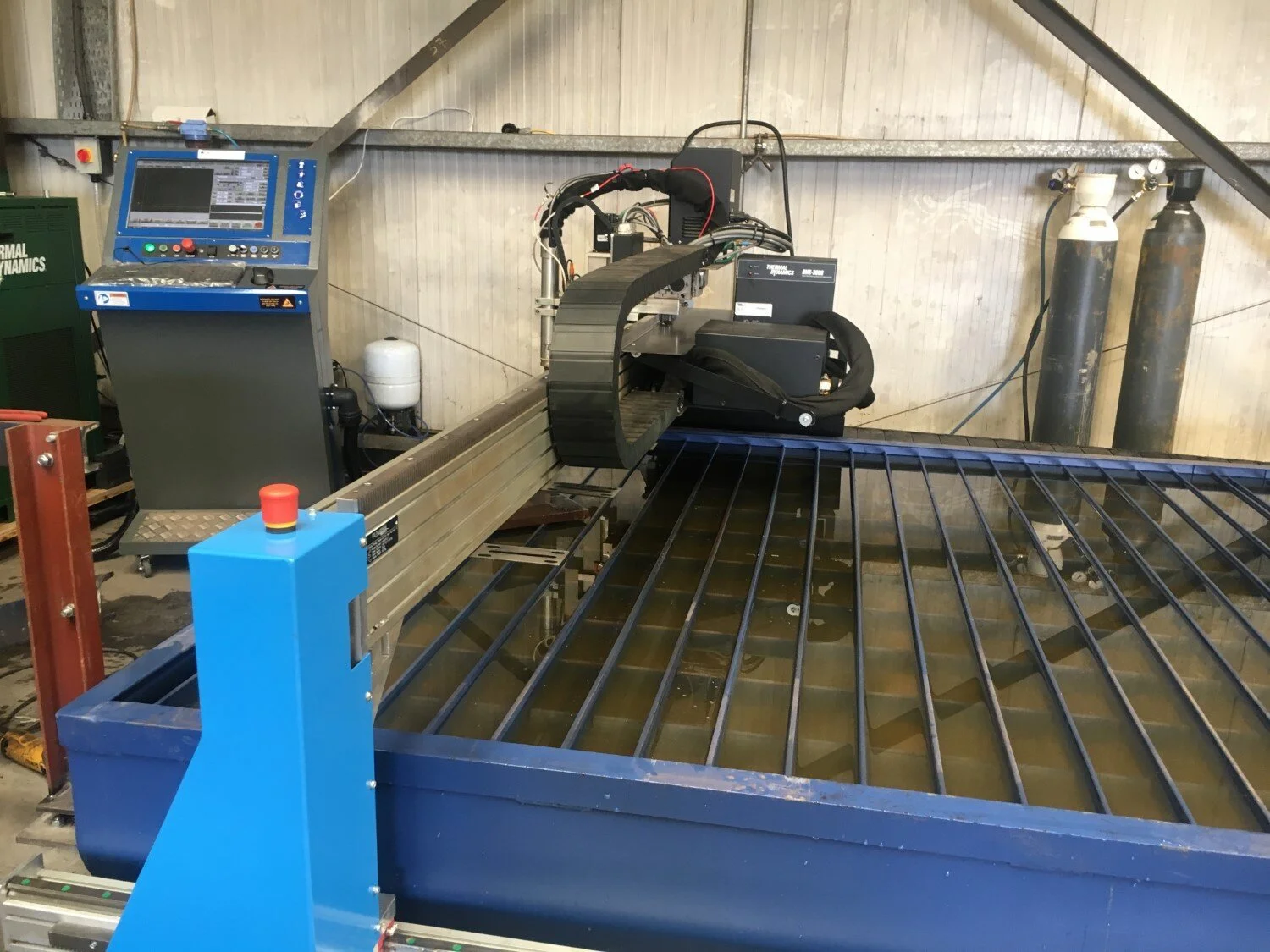

- Running the standard CR PLASMA controller on all machines in the range
- Steel Islands bolted to the floor provide the basis for the machine's running gear
- CR PLASMA designed torch post Z-axis lifter running ballscrews and hiwin rails
- Dual pinion anti-backlash gearboxes for the ultimate accuracy of torch position over machine life
All machines in the CR PLASMA range run on HIWIN rails, precision-ground rack and pinions, dual pinion antibacklash gearboxes and run the new generation CR PLASMA CNC controllers with a rich feature set of operator-focused functions. Our aim is to keep you cutting for longer with more efficiency
