POWERCUT 6000 × 2000 Portal Plasma Cutter
The 6000 x 2000mm portal plasma machine is used to allow loading of two full sheets 3000mm long at once. Even at 6000 x 2000mm stroke, the machine still maintains the same high-level accuracy and hole quality of the standard power cut. The system uses the same precision-ground rack and pinion machine drive system we run on all our machines.
- 6000 x 2000mm machine working area
- Hypertherm 125PMX compatible
- Thermal Dynamics ULTRA Cut XT compatible.
- All cable chain management uses fully sealed chains from IGUS

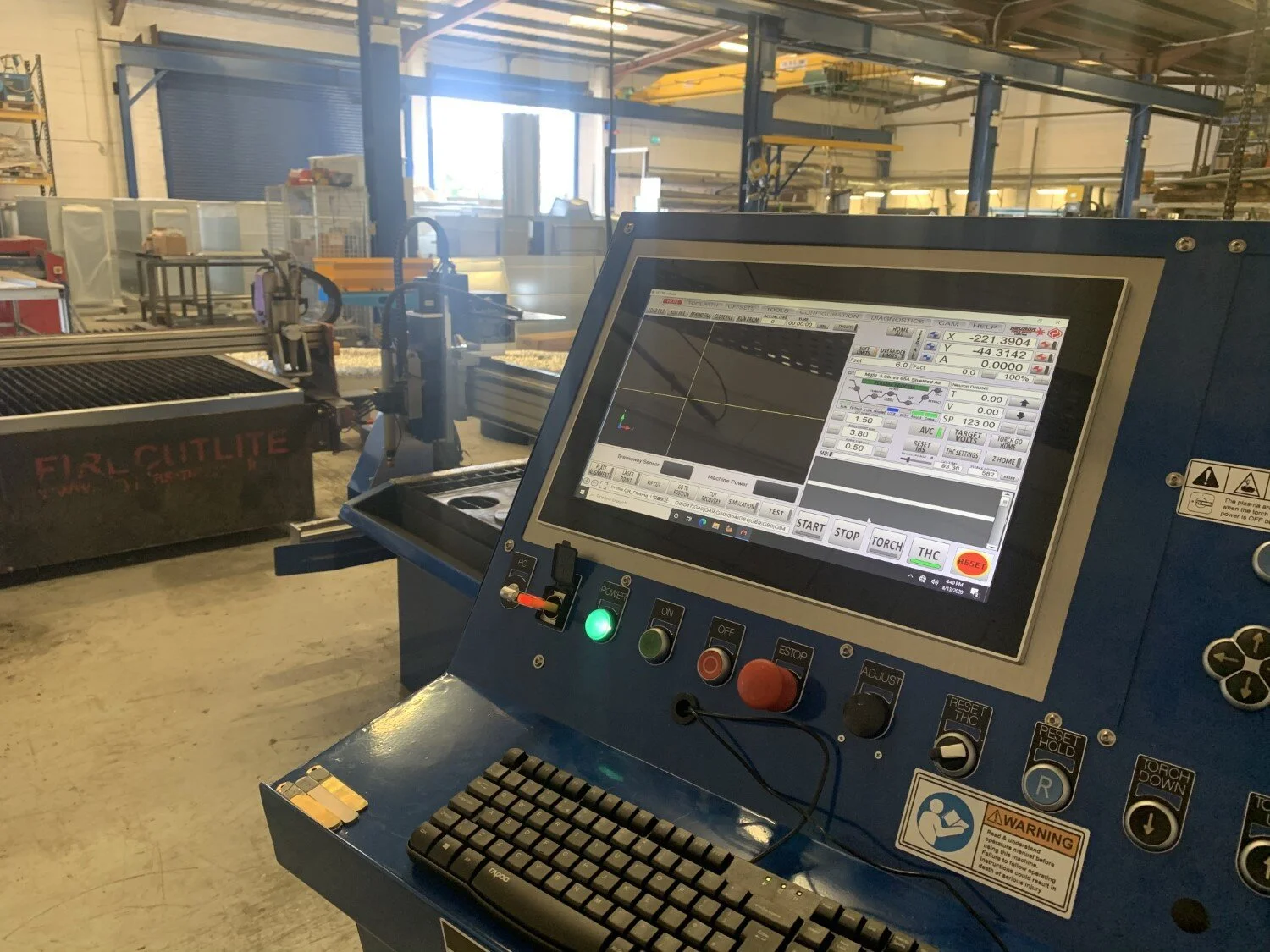

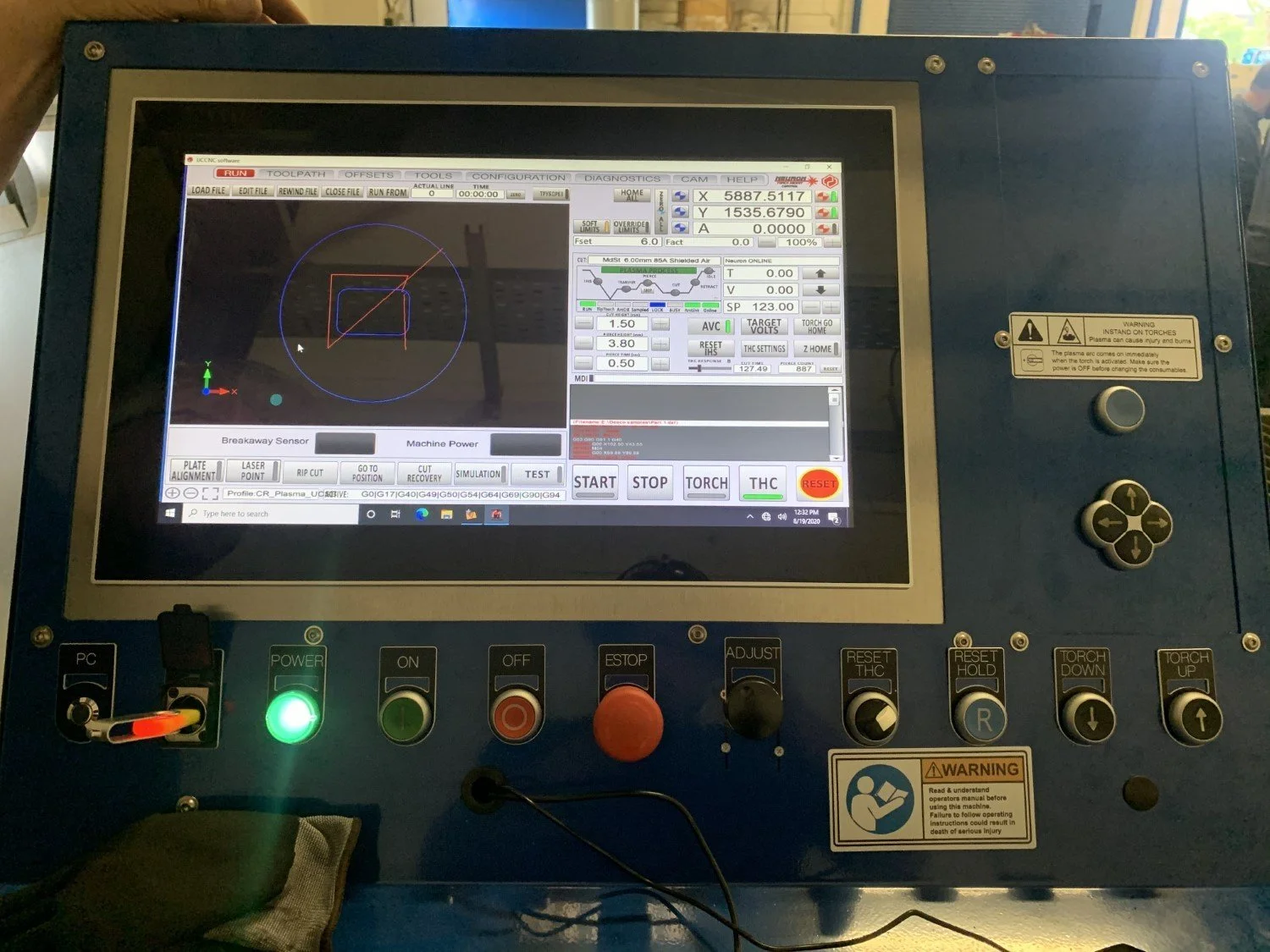

- Running the standard CR PLASMA controller on all machines in the range
- Steel Islands bolted to the floor provide the basis for the machine's running gear

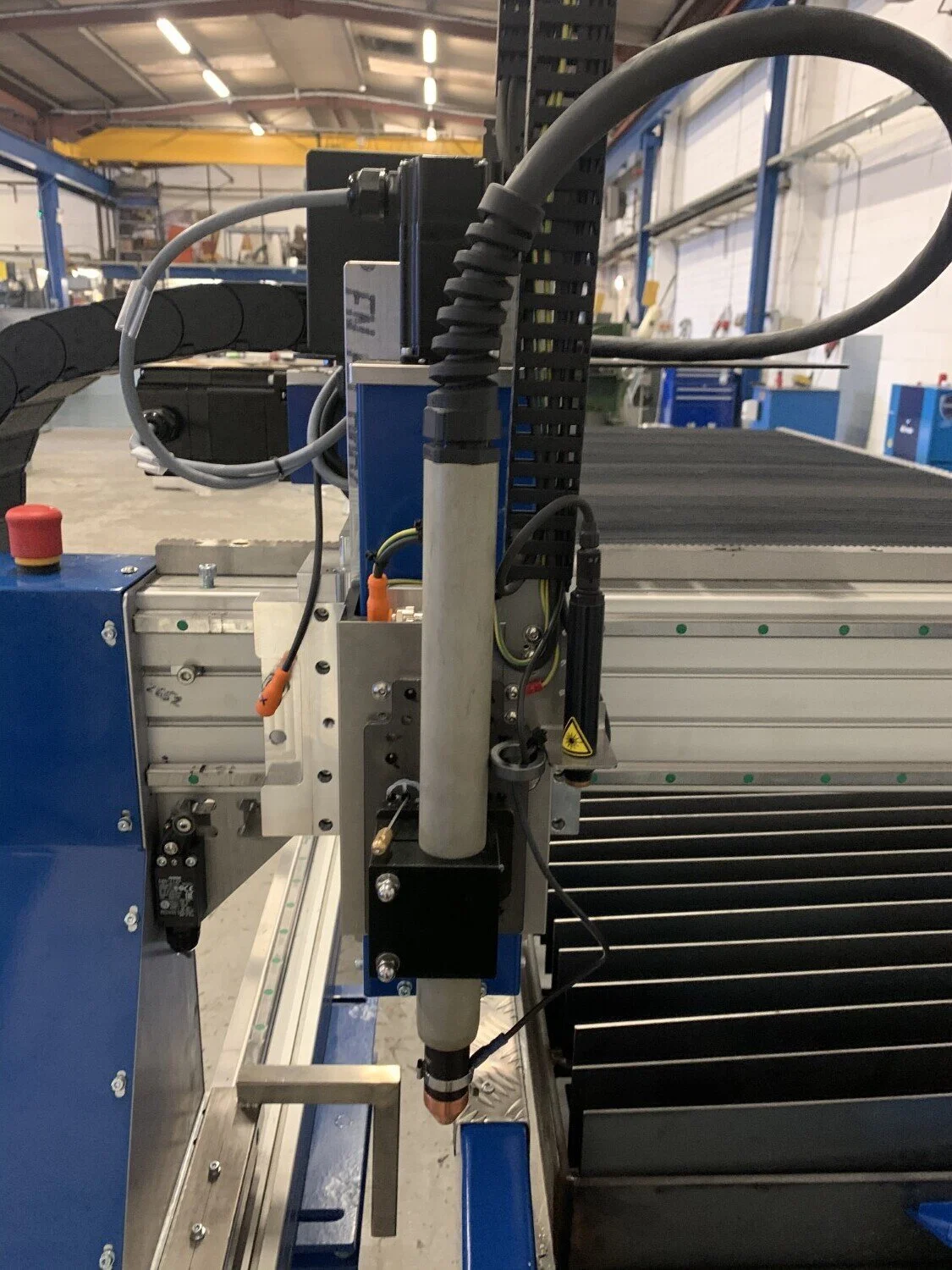

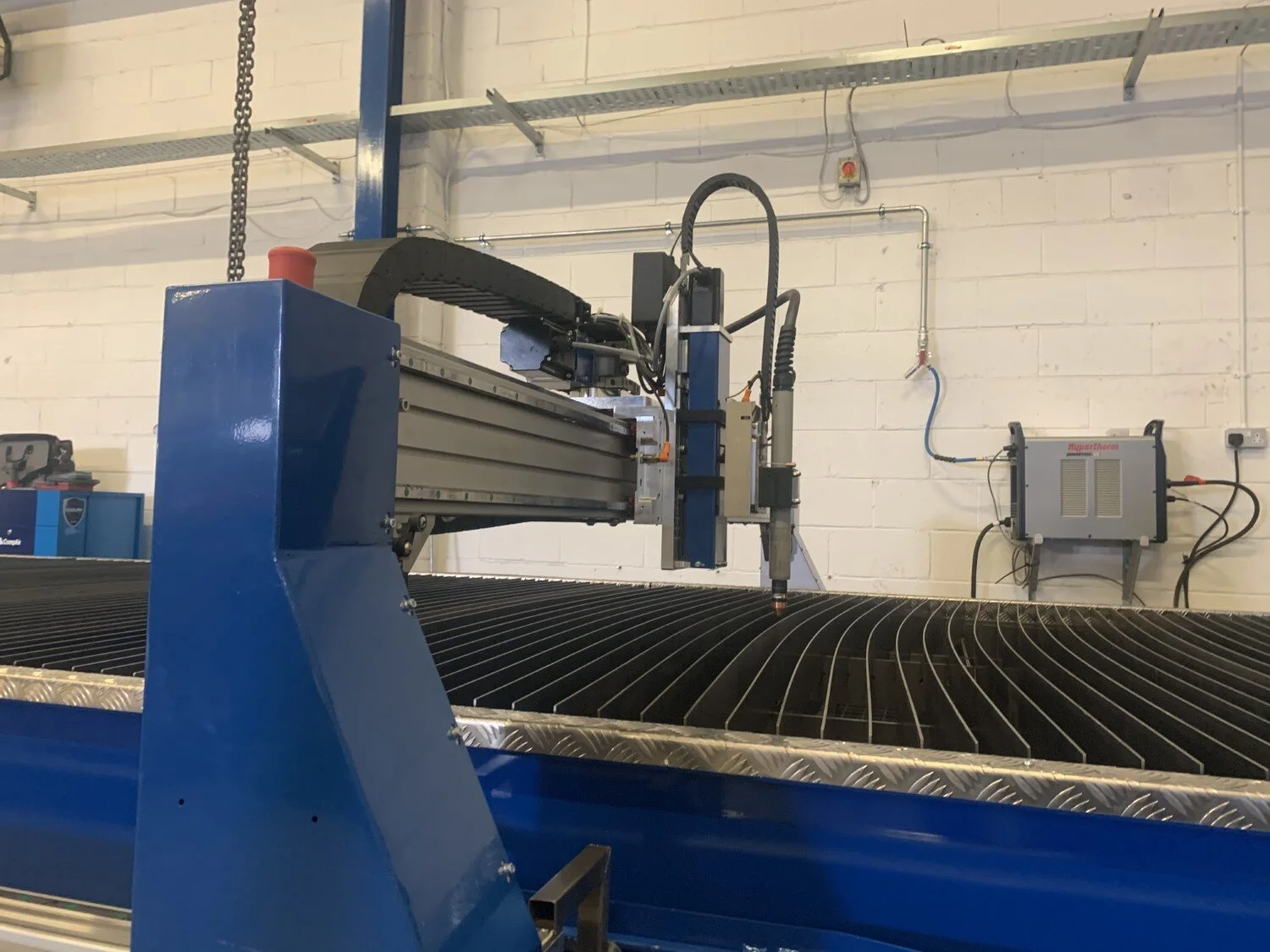

- CR PLASMA designed torch post Z-axis lifter, running ballscrews and HIWIN rails
- Dual pinion anti-backlash gearboxes for the ultimate accuracy of torch position over machine life
CR PLASMA Portal machines • Long axis travel • Compact footprint
All the CR PLASMA portal machines are bolted to the floor with specially designed steel islands. The steel islands allow adjustment of the long-axis drive system for smooth level motion. All island surfaces are laser-aligned and carefully checked.

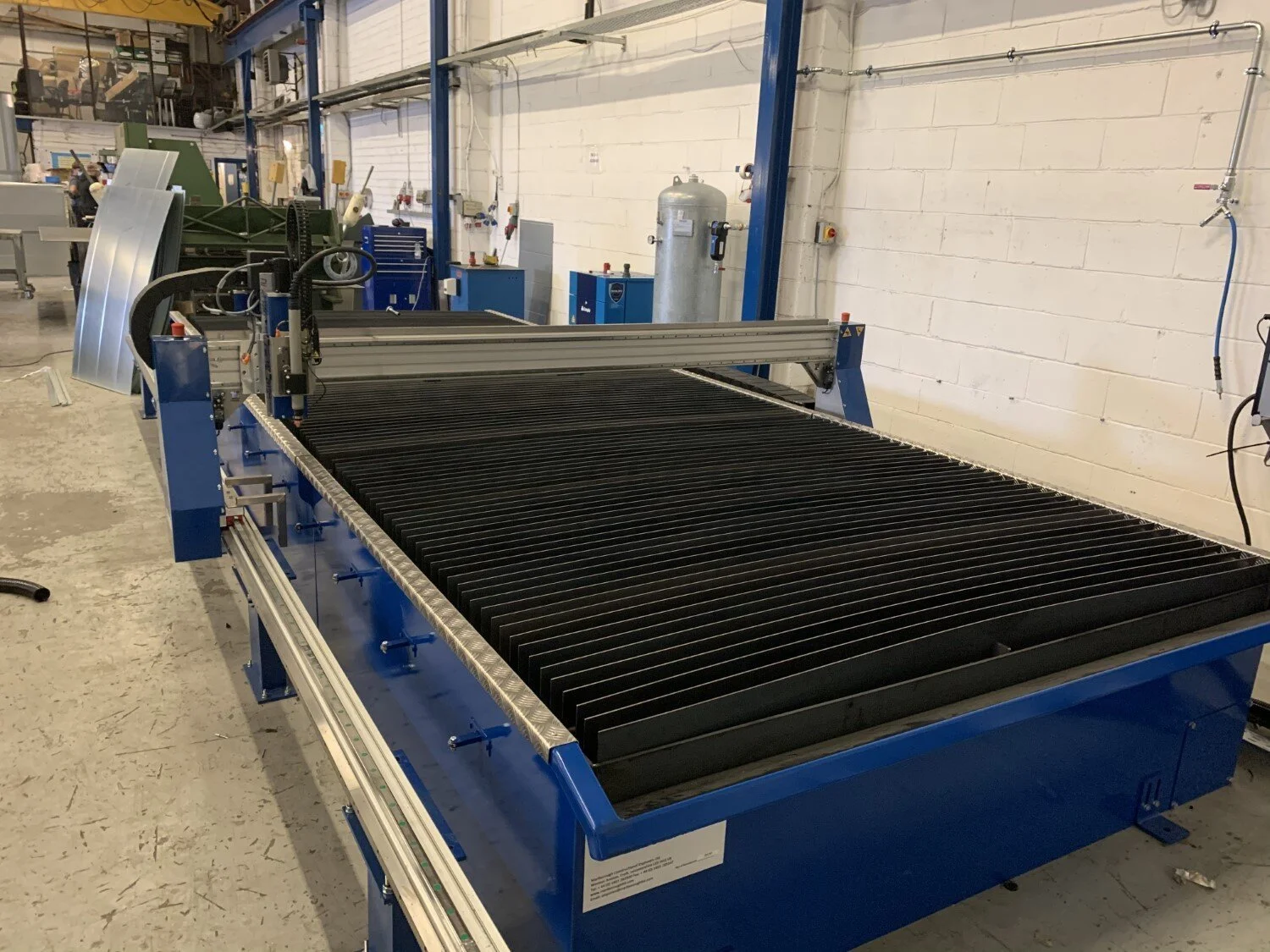

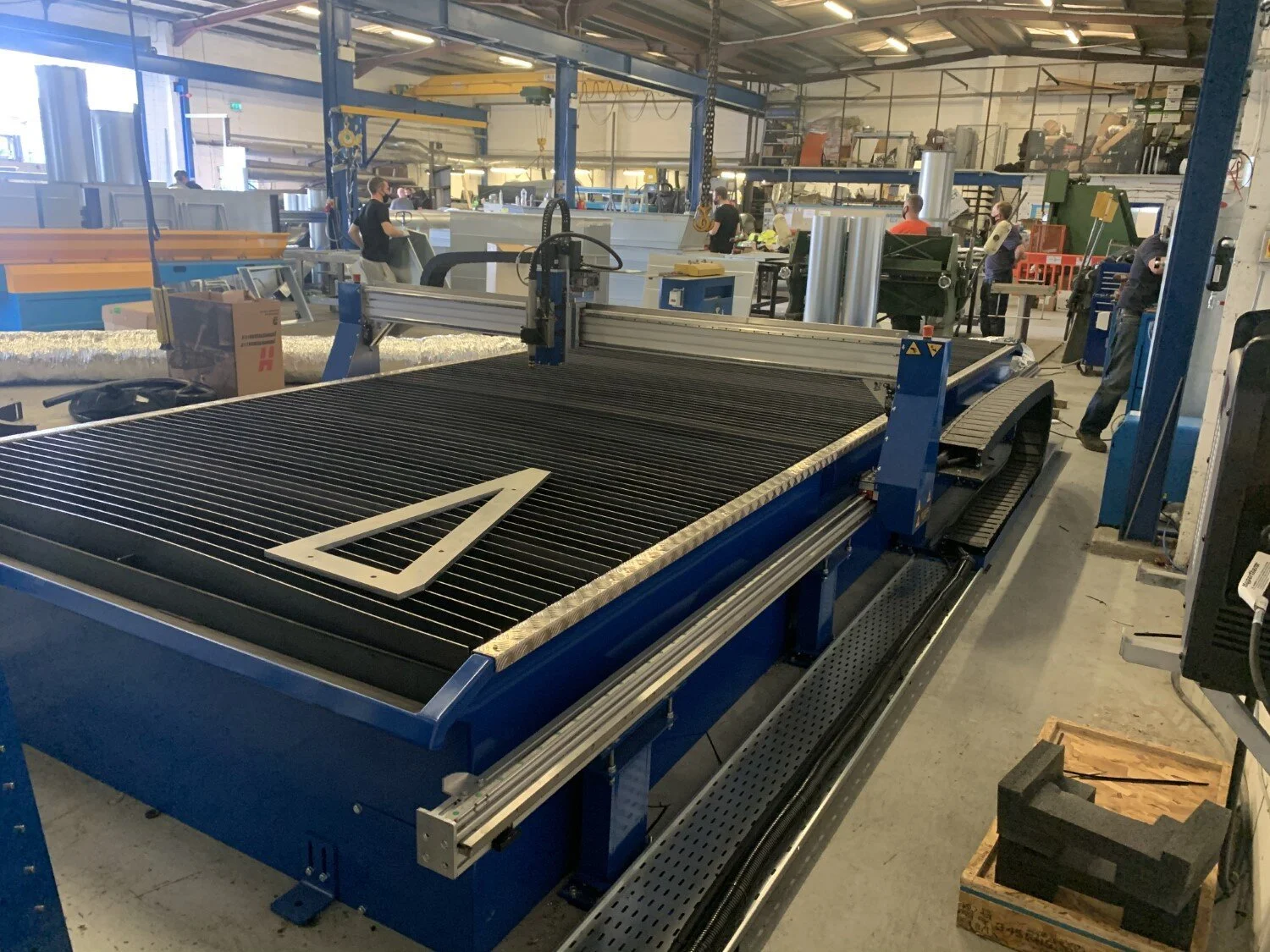

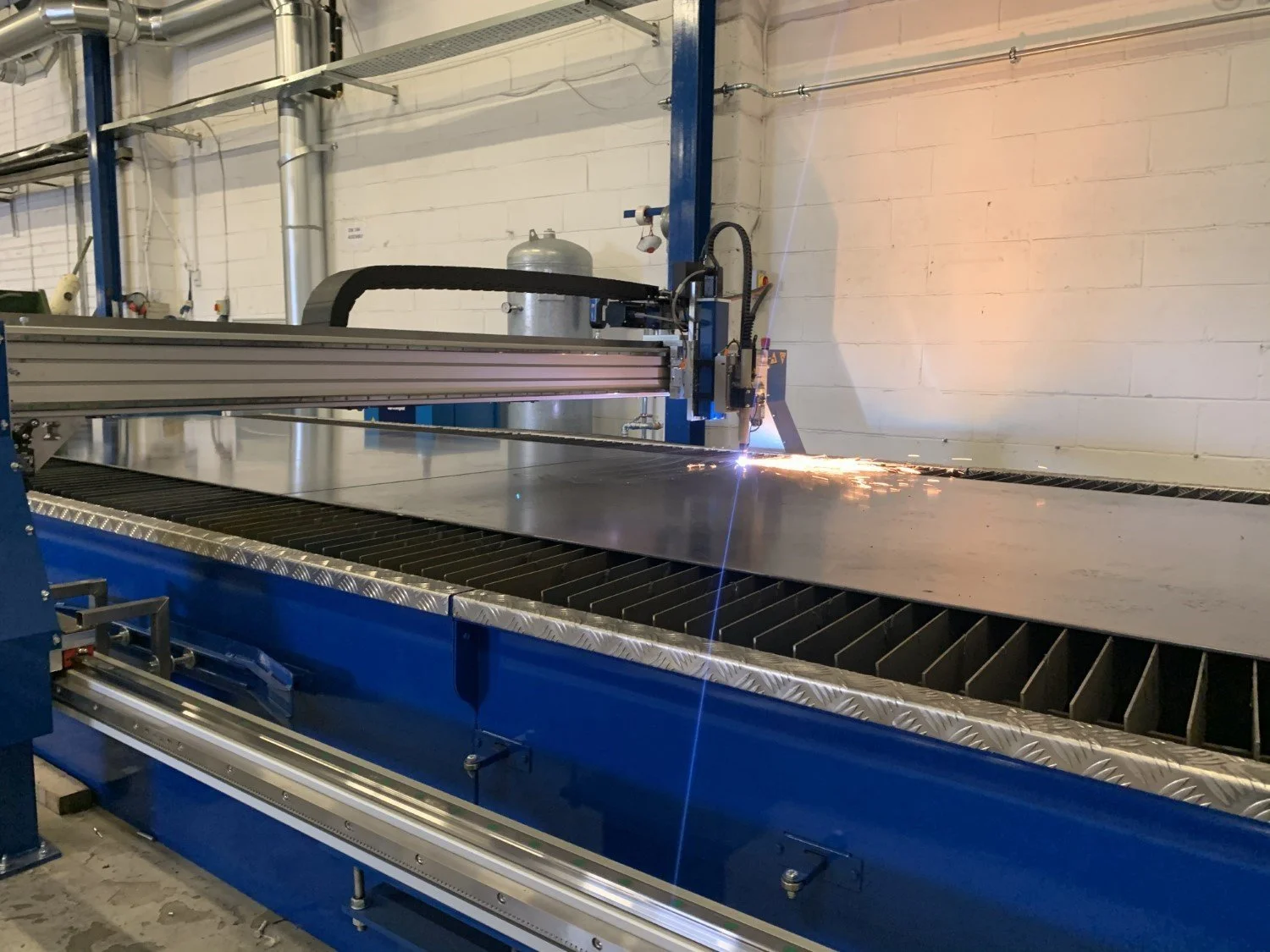

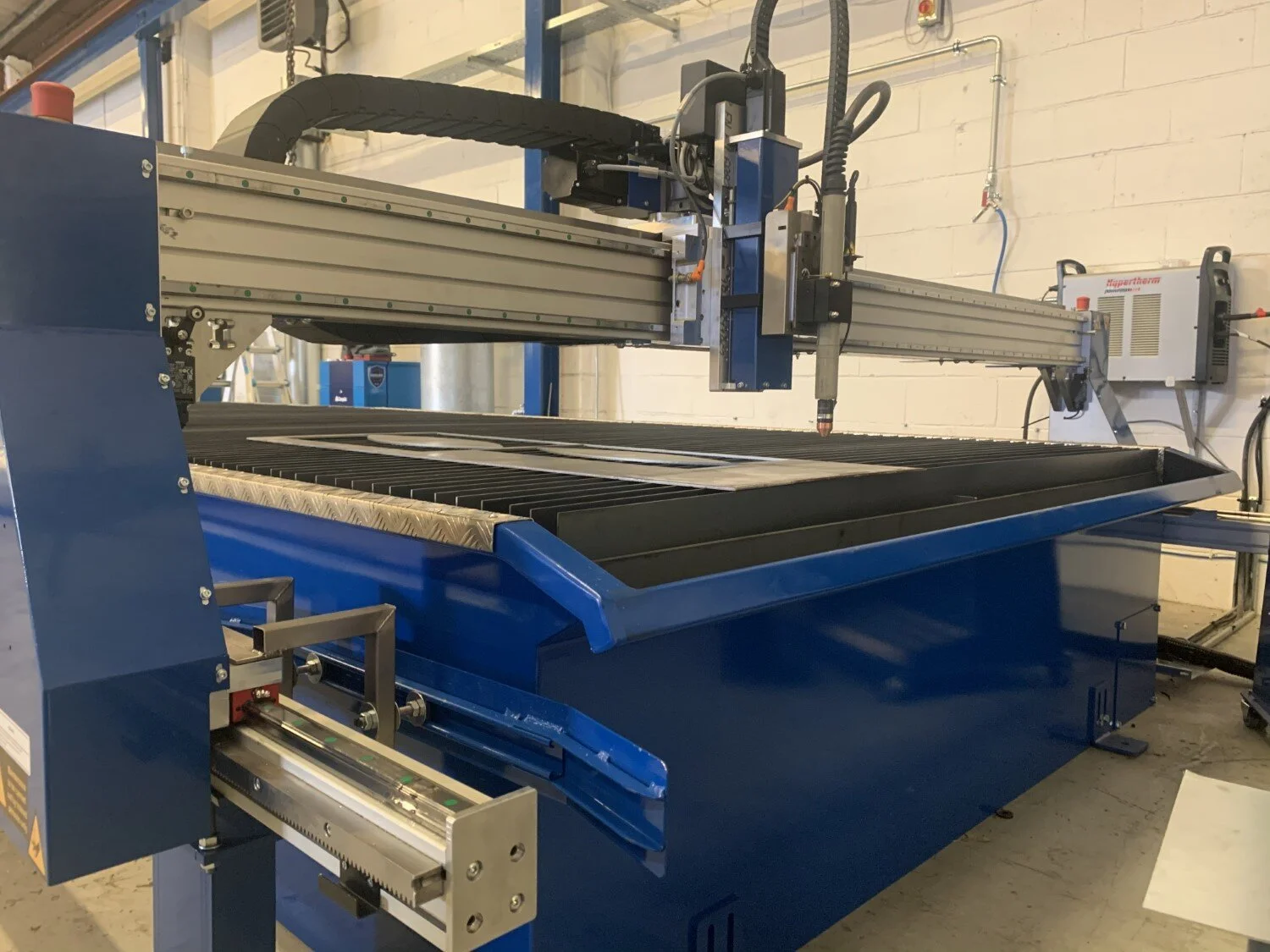

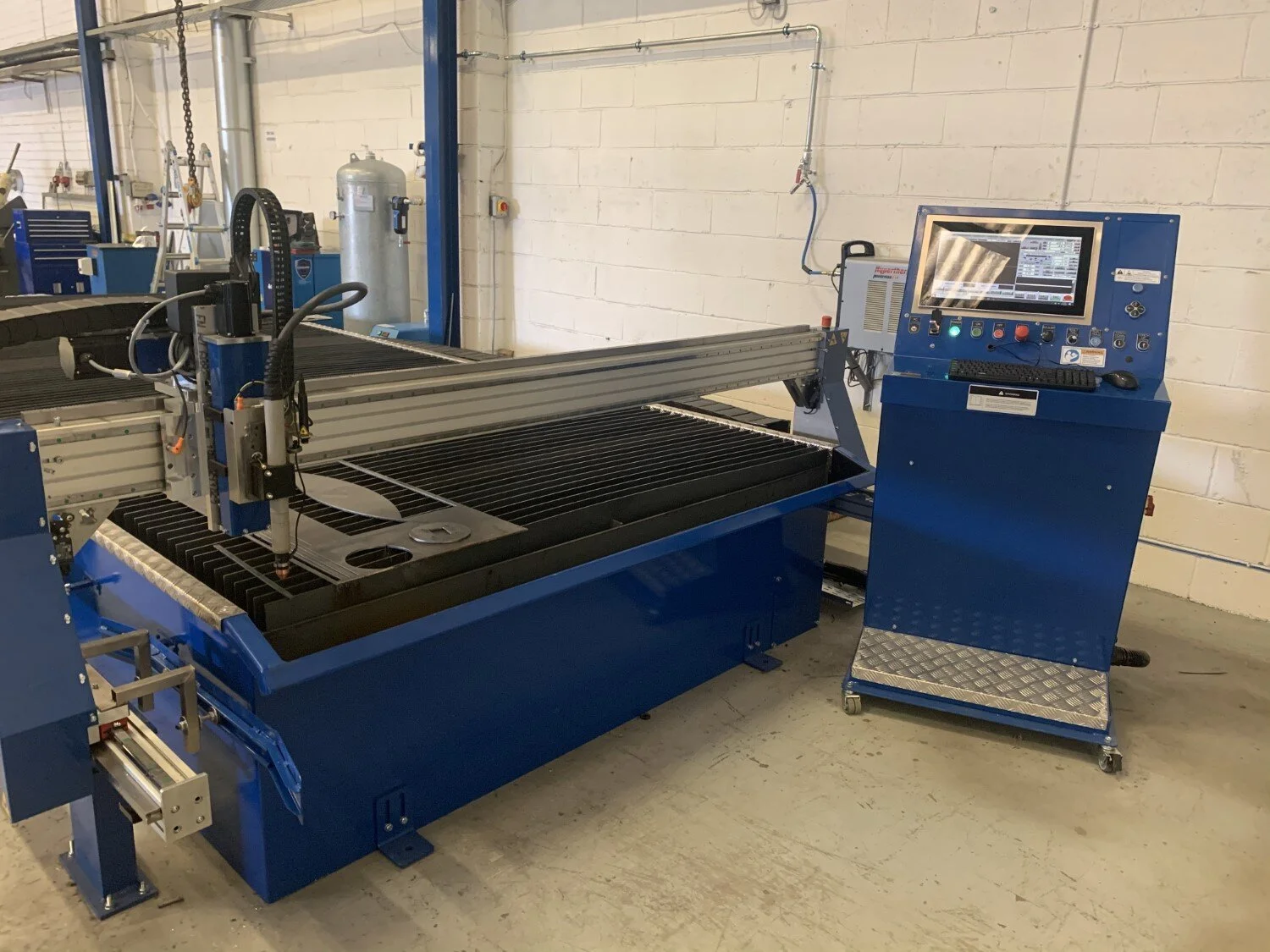

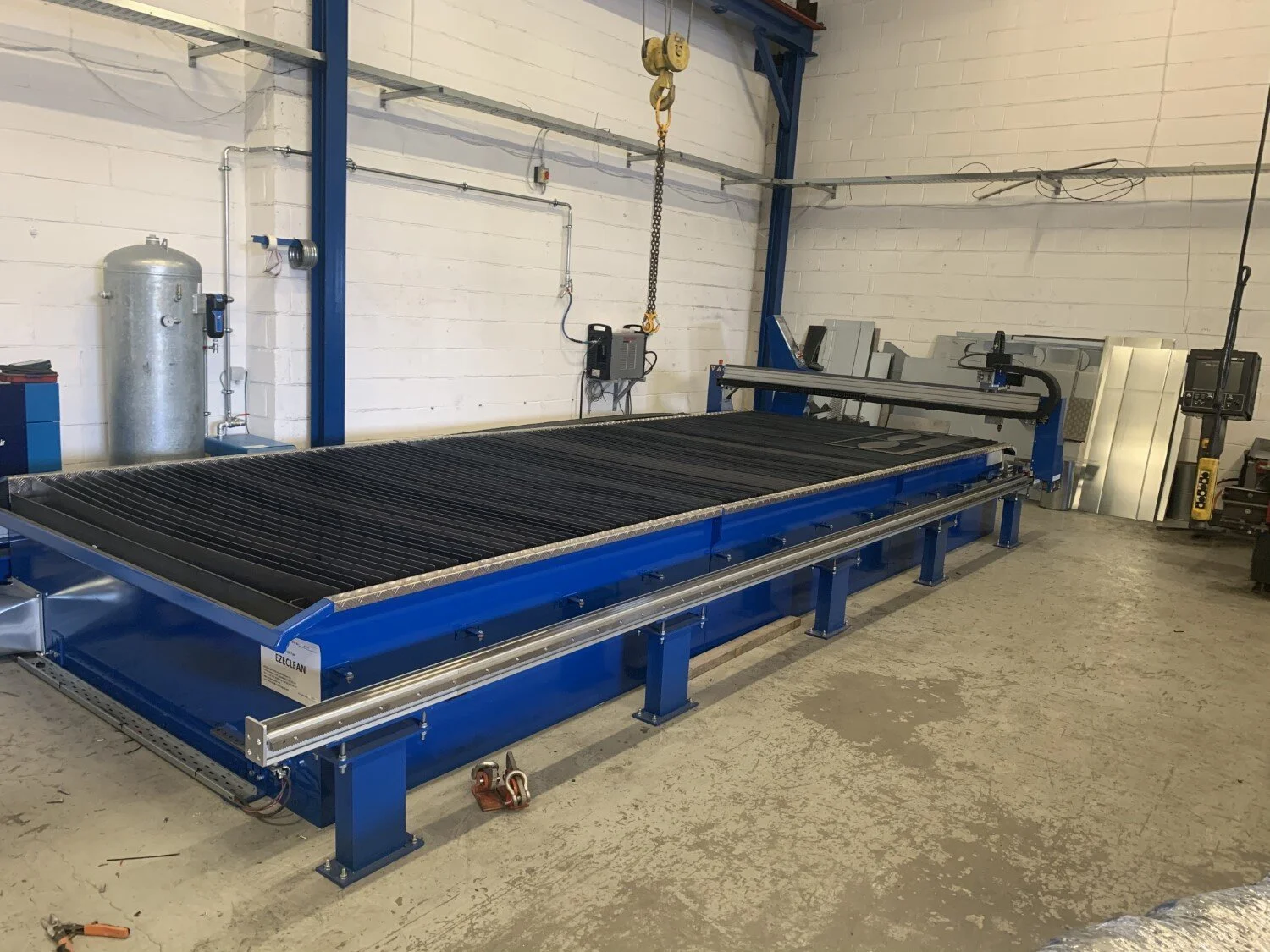

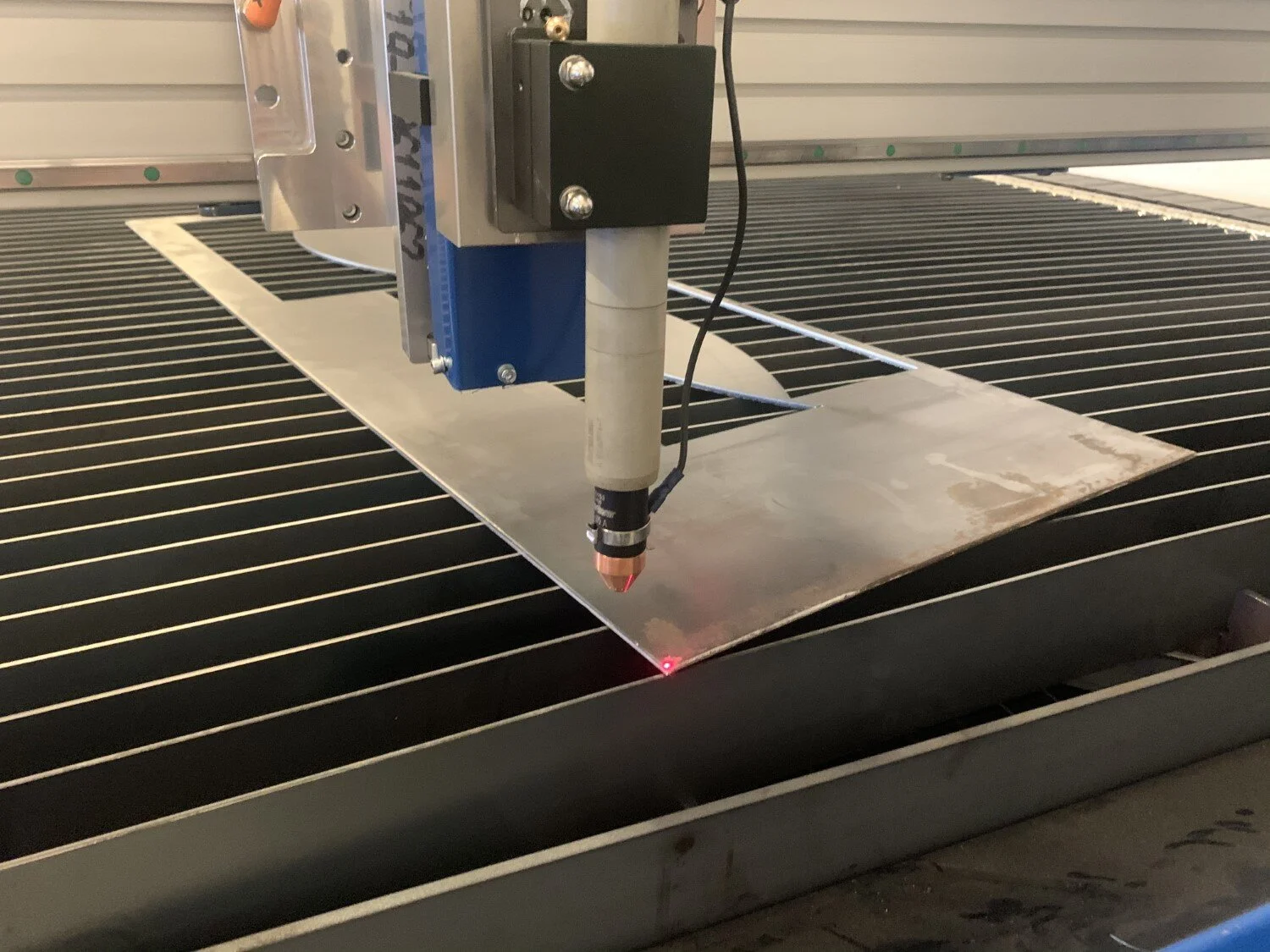

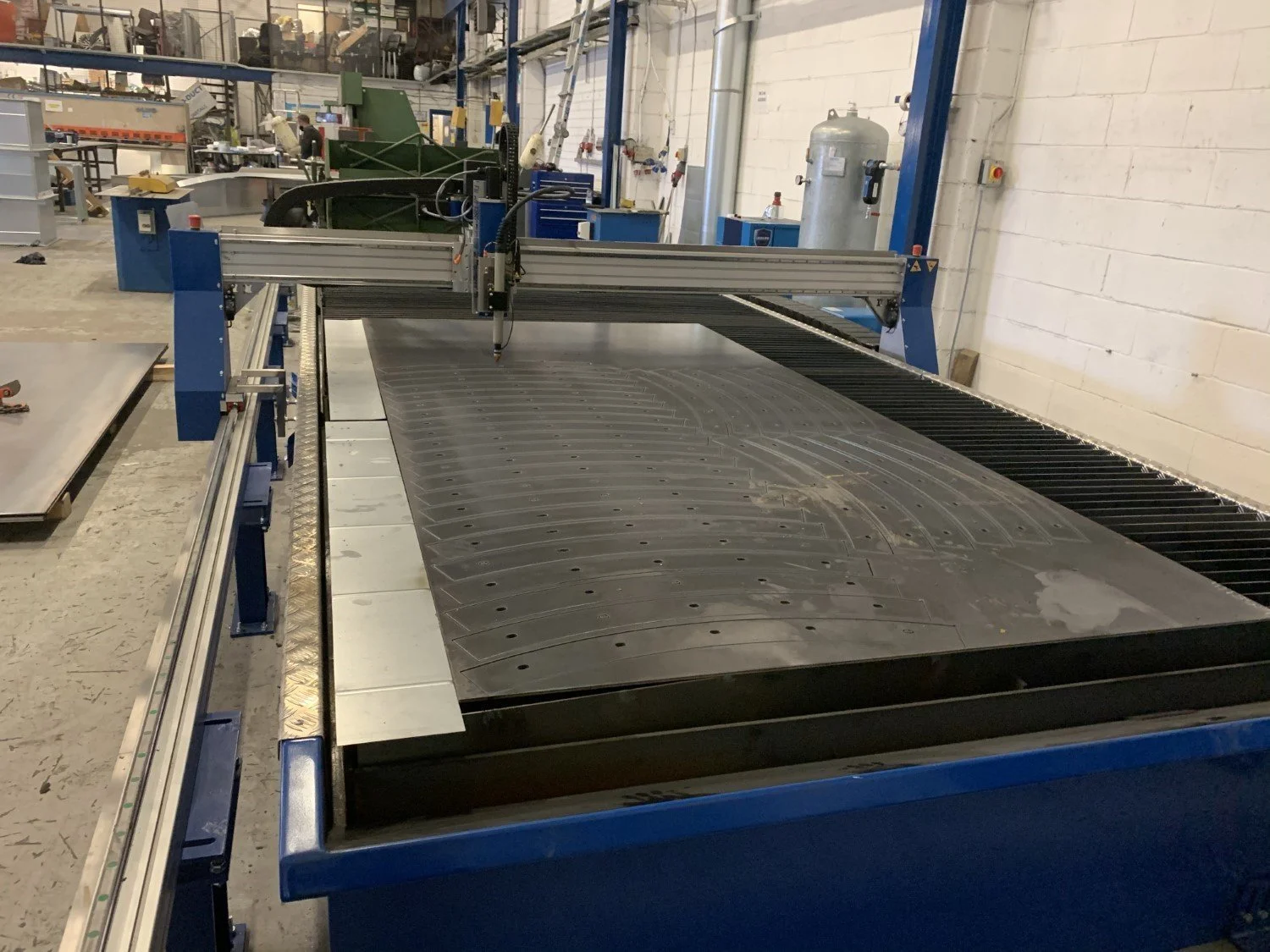

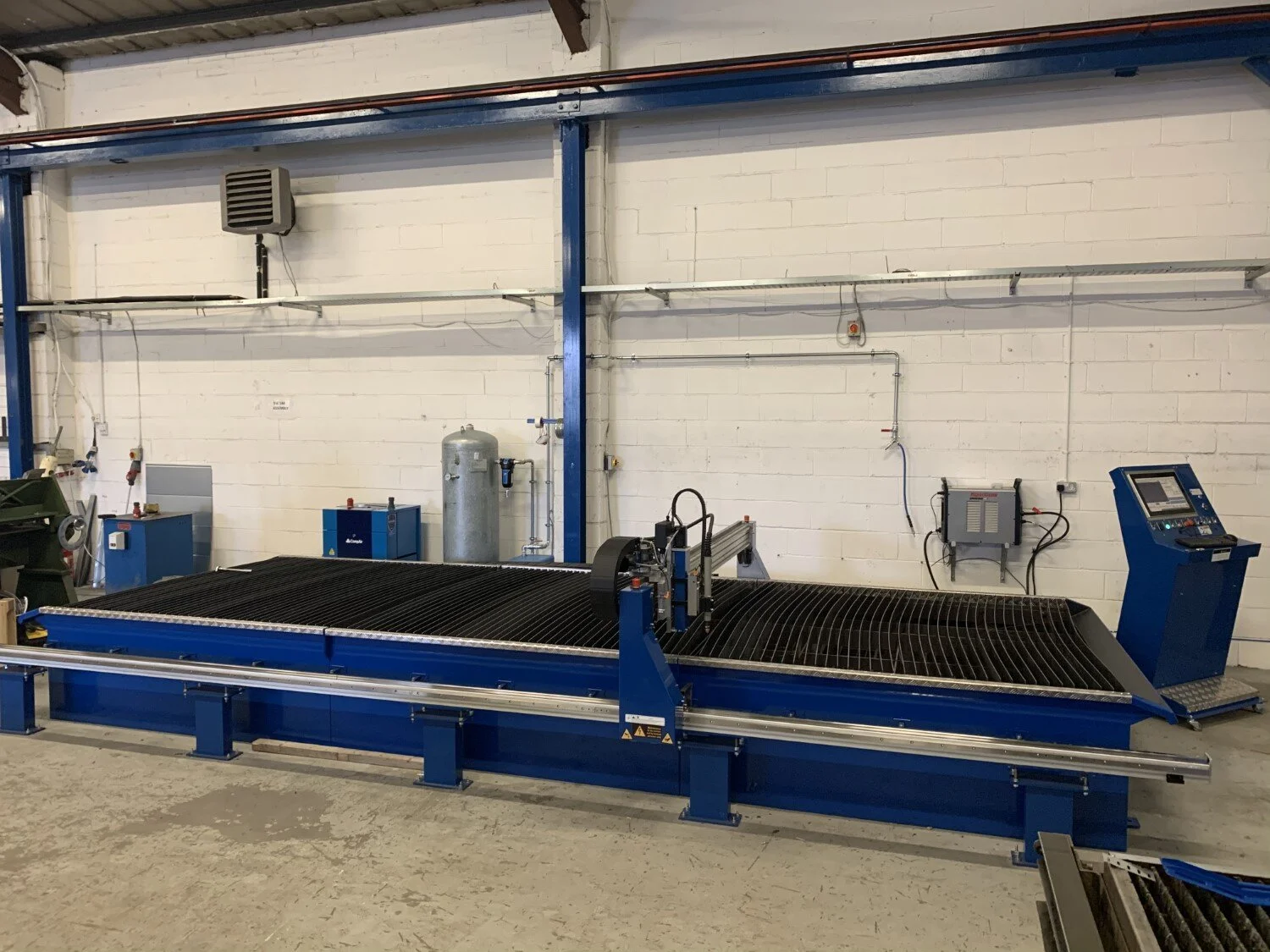

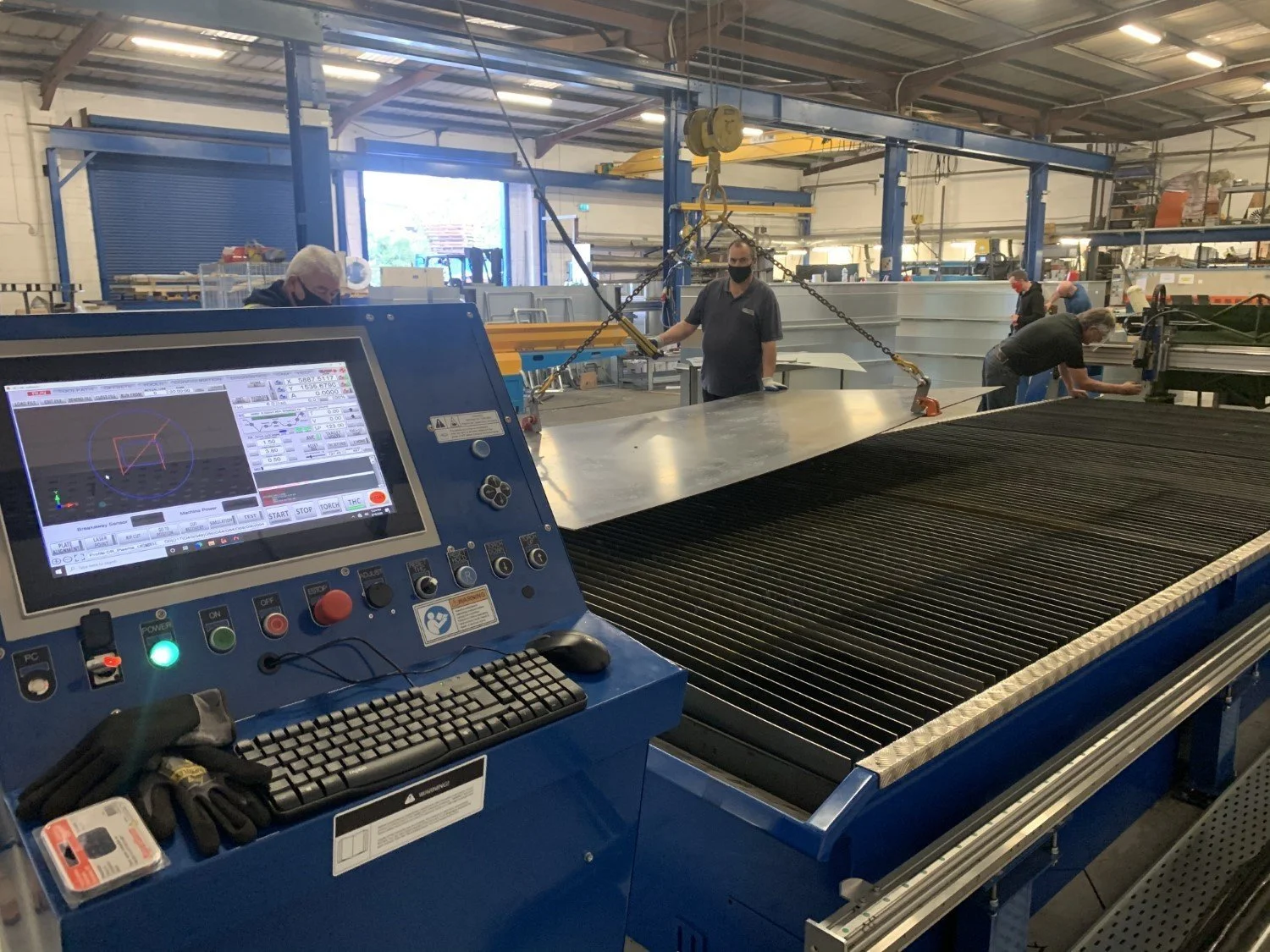

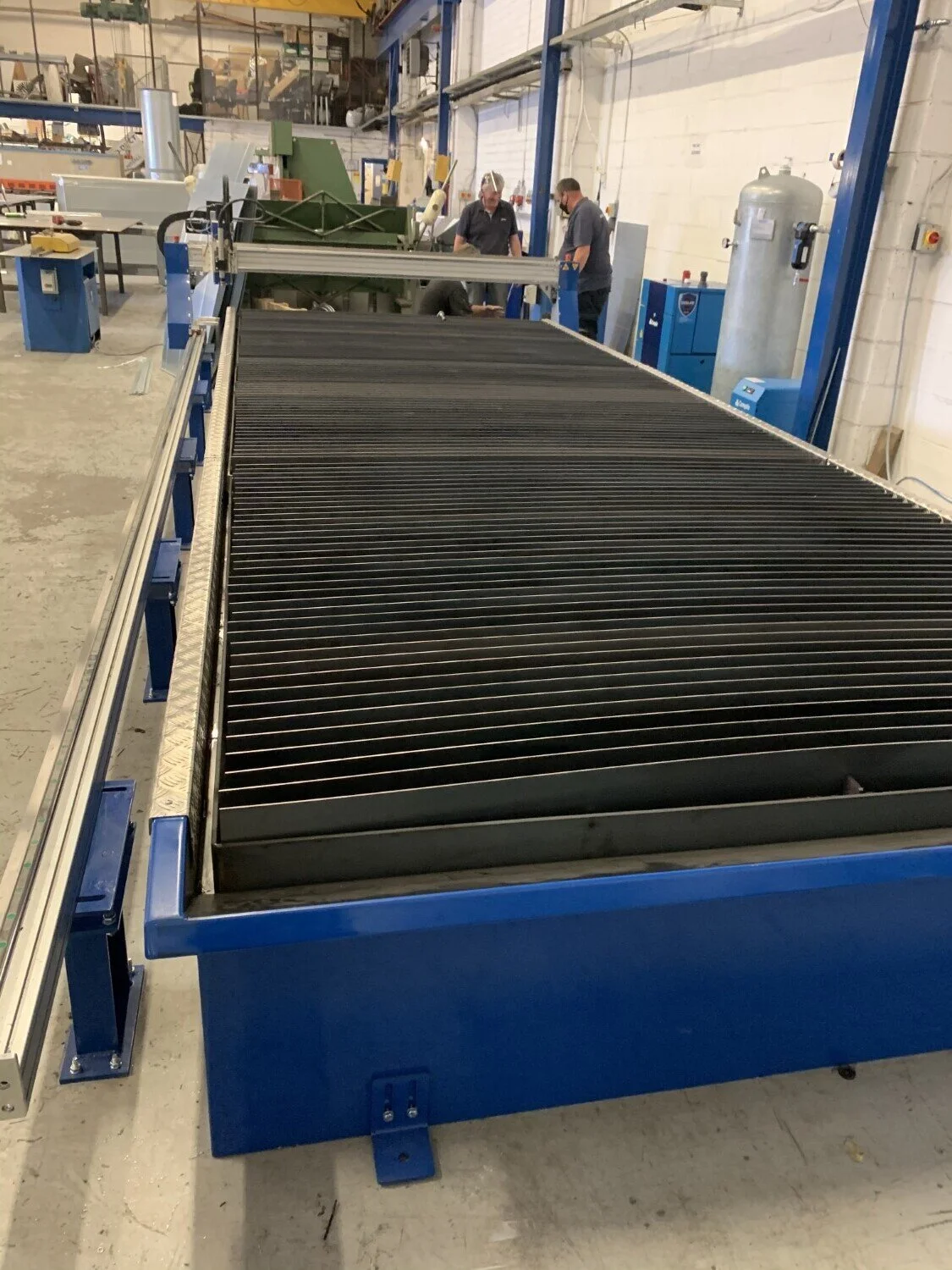

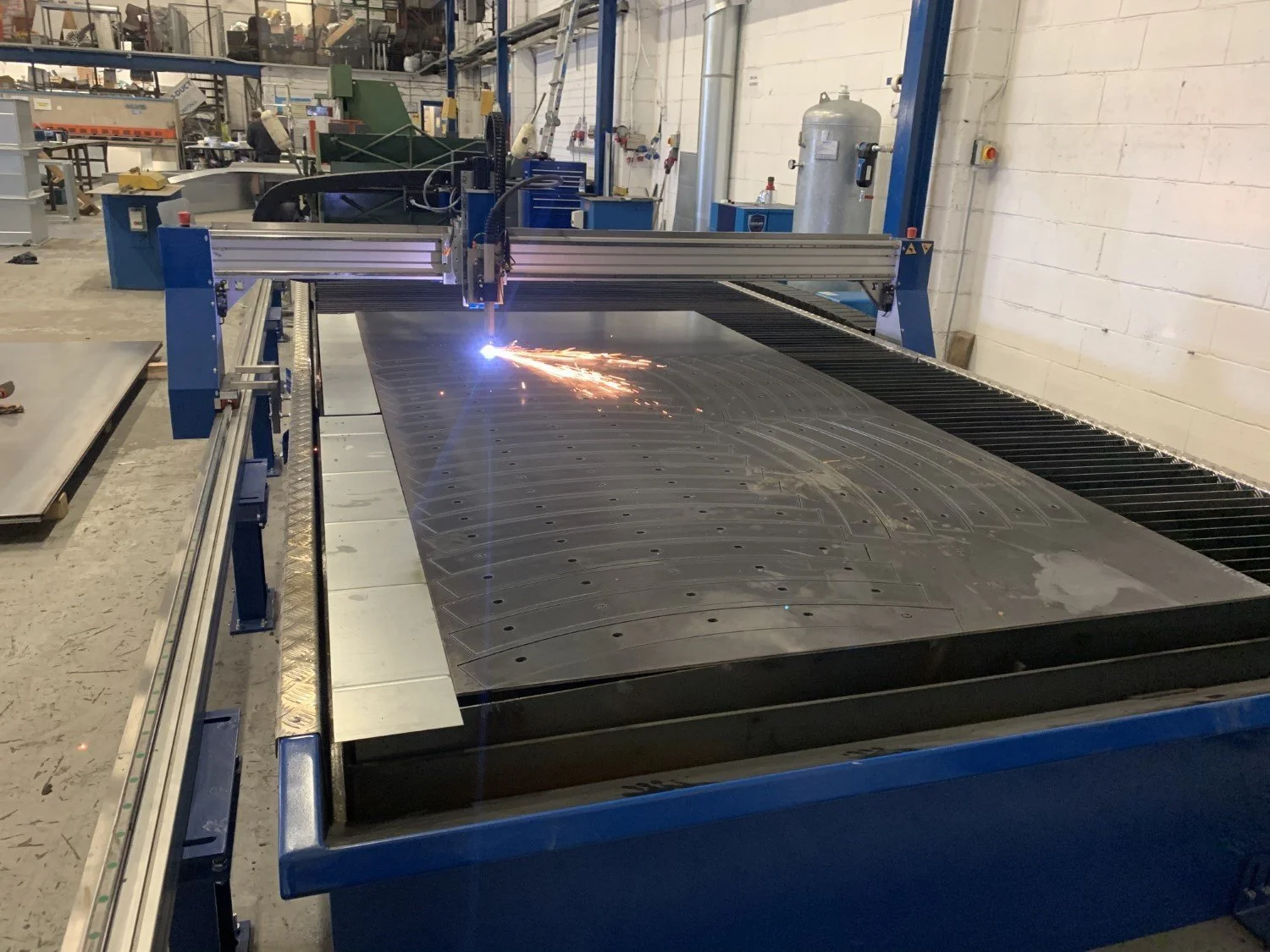

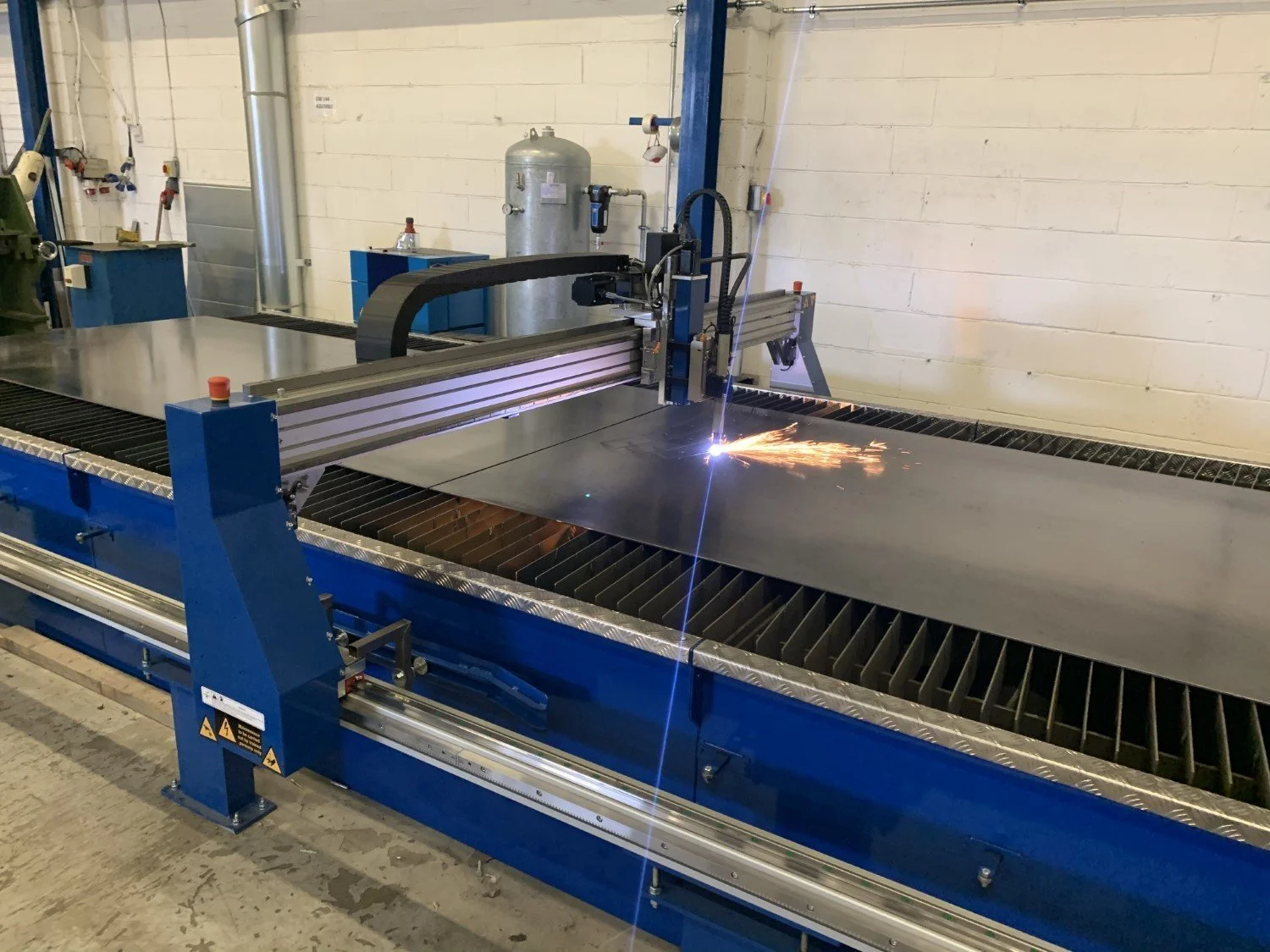

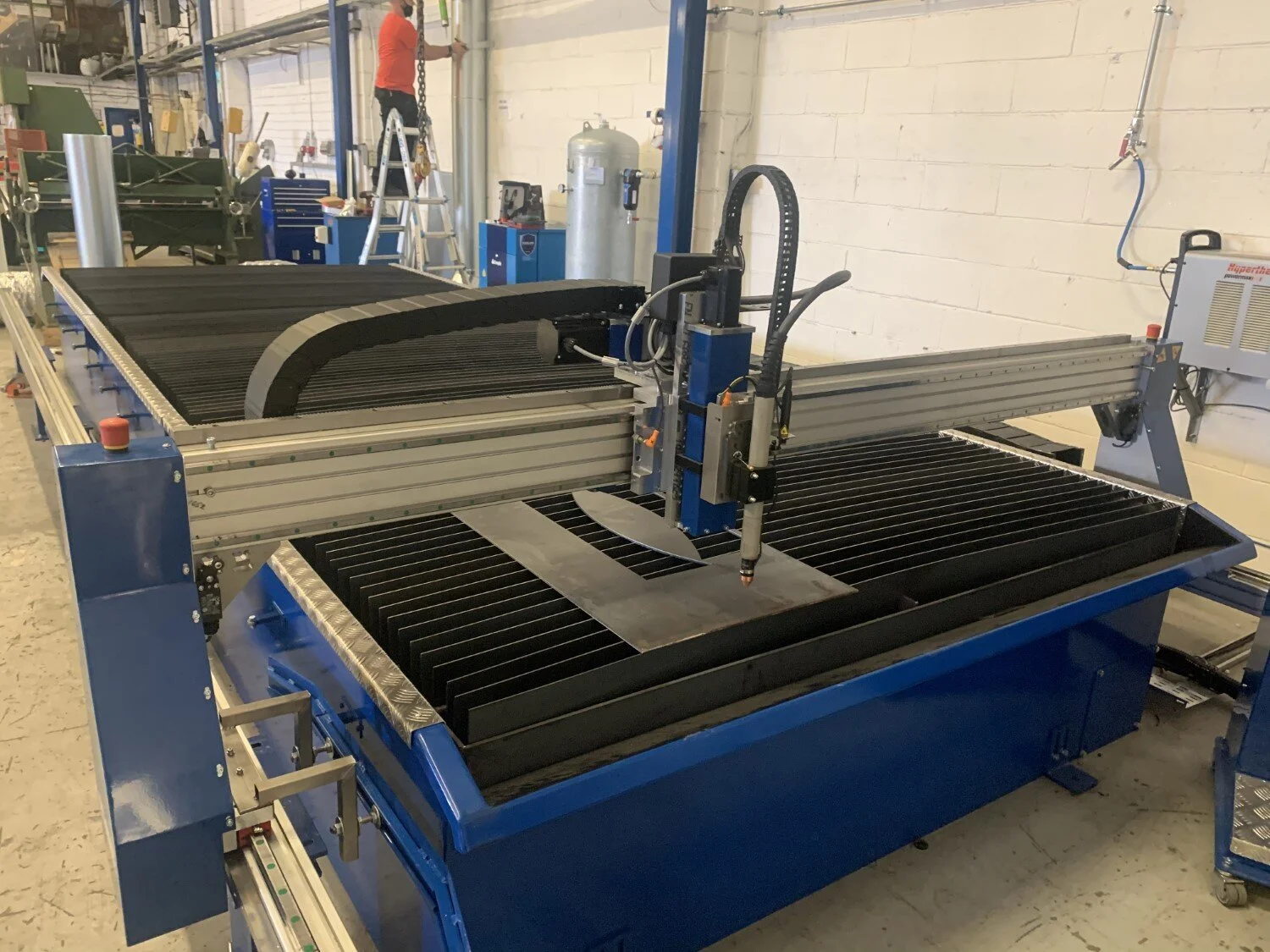

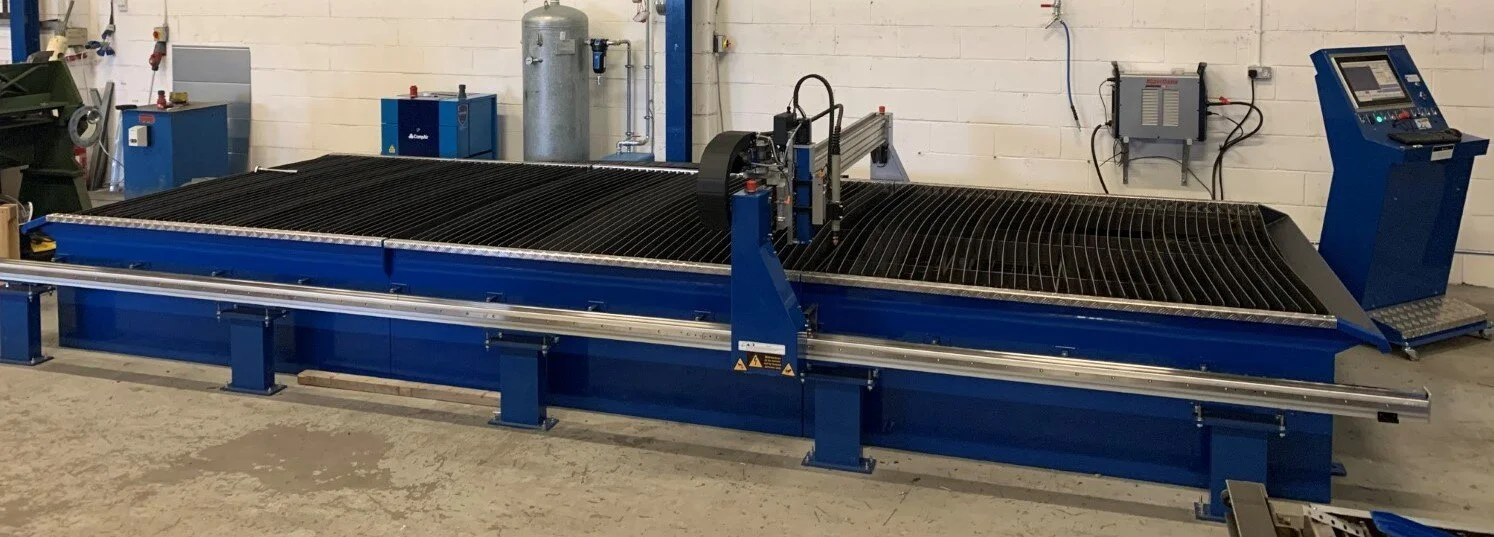

6000 x 2000mm Portal Plasma Cutter Photo Gallery
