POWERCUT 6000 × 2500 Portal Plasma Cutter
300A - 301 UltracutXT - Equipped CR PLASMA POWERCUT
- Oxygen air for cutting Mild Steel
- Nitrogen and Water for cutting Stainless Steel
- 300A of power to pierce and cut 40mm plate
- 6000 x 2500mm of working area.
CR PLASMA Equipped 300A Ultracut XT - QUIKPIERCE
Check out the video showing the 301 ULTRACUTXT running at 300A’s with Oxygen and Air cutting 40mm mild steel.
The system is equipped with QUICK PIERCE technology allowing the plasma to get down through 40mm mild steel significantly faster making for faster plate production times
The 6000 x 2500mm portal plasma machine is used to allow loading of two full sheets 3000mm long at once. Even at 6000 x 2000mm stroke, the machine still maintains the same high-level accuracy and hole quality of the standard power cut. The system uses the same precision-ground rack and pinion machine drive system we run on all our machines.
- 6000 x 2500mm machine working area
- Hypertherm PMX, SYNC, and MAX PRO compatible
- Thermal Dynamics ULTRA Cut XT compatible.
- All cable chain management uses fully sealed chains from IGUS
- Running the standard CR PLASMA controller on all machines in the range
- Steel Islands bolted to the floor provide the basis for the machine's running gear
- CR PLASMA designed torch post Z-axis lifter, running ballscrews and HIWIN rails
- Dual pinion anti-backlash gearboxes for the ultimate accuracy of torch position over machine life
CR PLASMA Portal machines • Long axis travel • Compact footprint
All the CR PLASMA portal machines are bolted to the floor with specially designed steel islands. The steel islands allow adjustment of the long axis drive system for smooth level motion. All island surfaces are laser aligned and carefully checked.

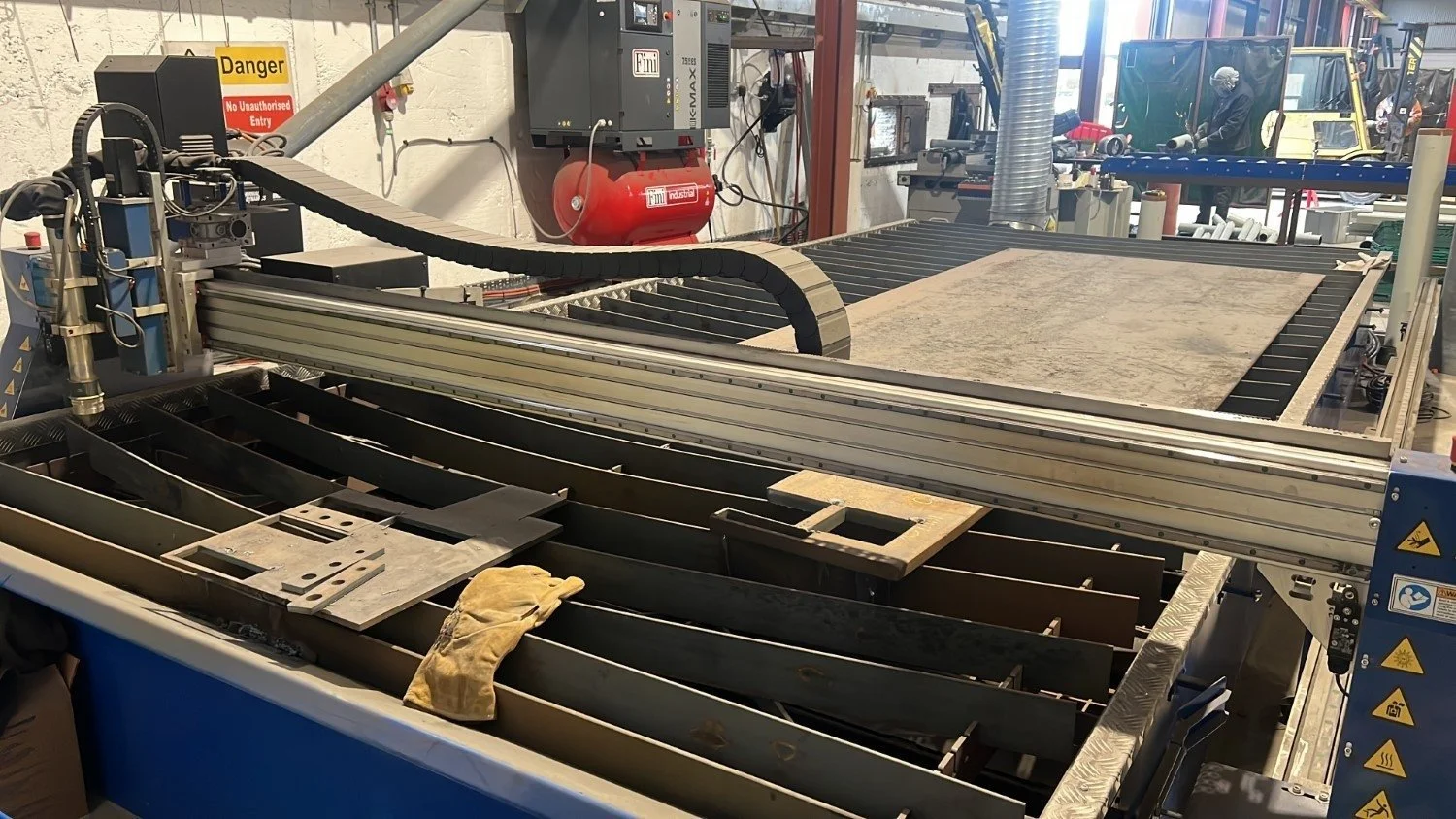

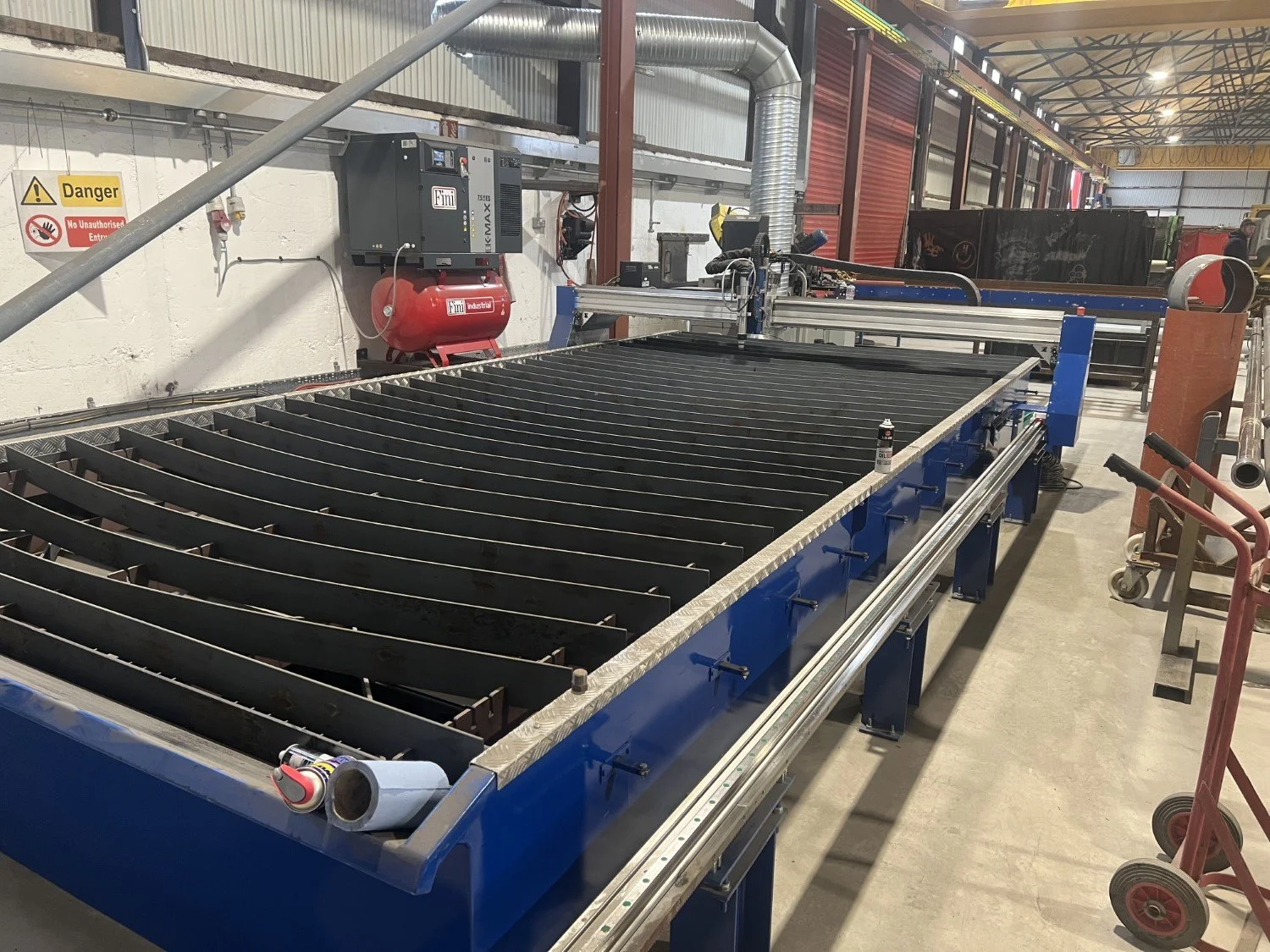

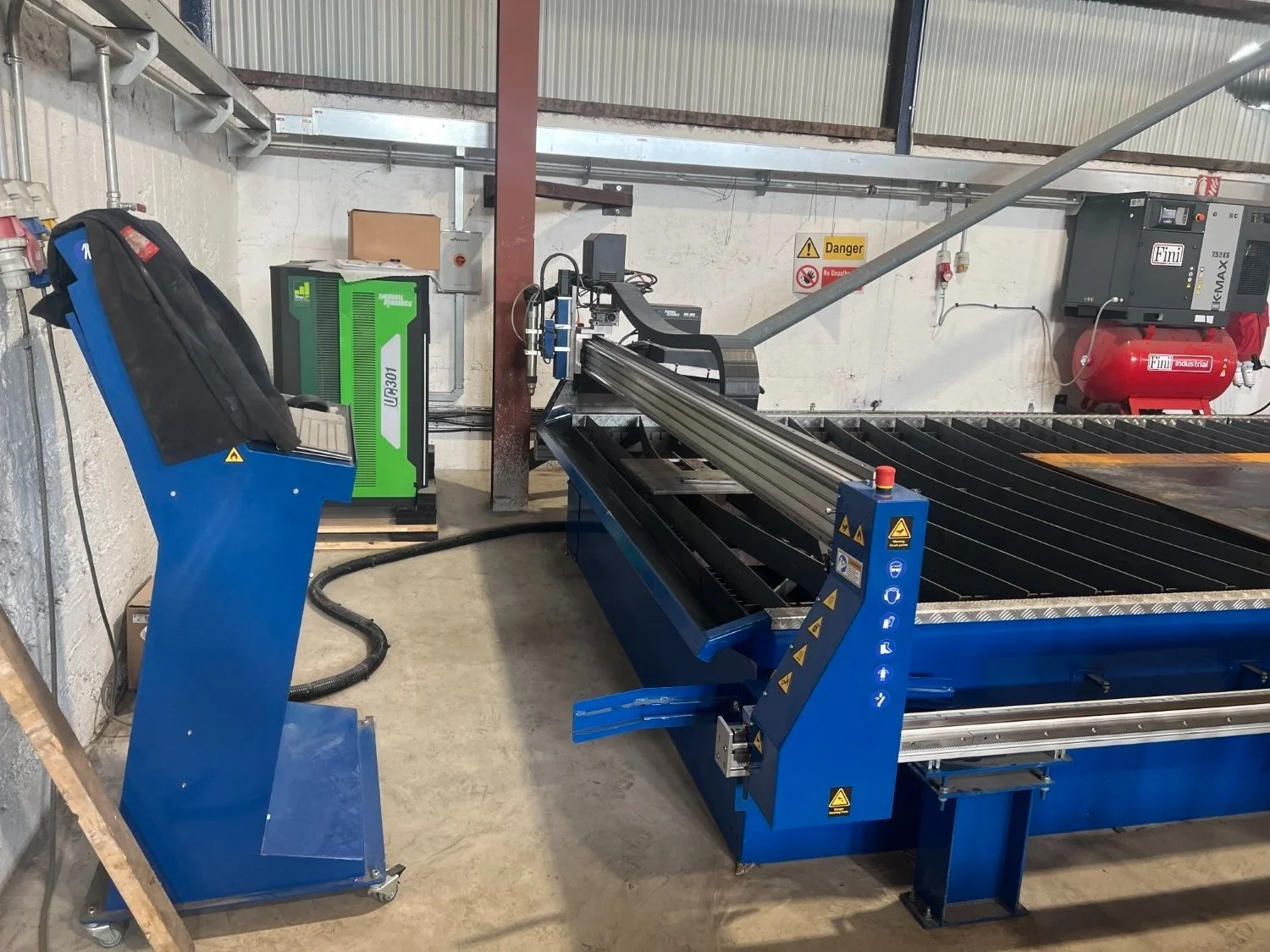

6000 x 2500mm Portal Plasma Cutter Photo Gallery
