ESPRIT Viper Gas Plasma Combination Machine - DUAL PROCESS
200A Autocut XT from Thermal Dynamics and CNC OXY Cutting
The ESPRIT Viper CNC machine had an upgrade to CNC Gas cutting using oxygen and propane. Now the machine has a further update to CNC plasma cutting.
- One click and CNC Plasma cut
- One click and CNC Gas cut
- DAUL Technology machine
- CR PLASMA retrofit
- Multifuctional machine from 2mm to 150mm steel cutting capacity.

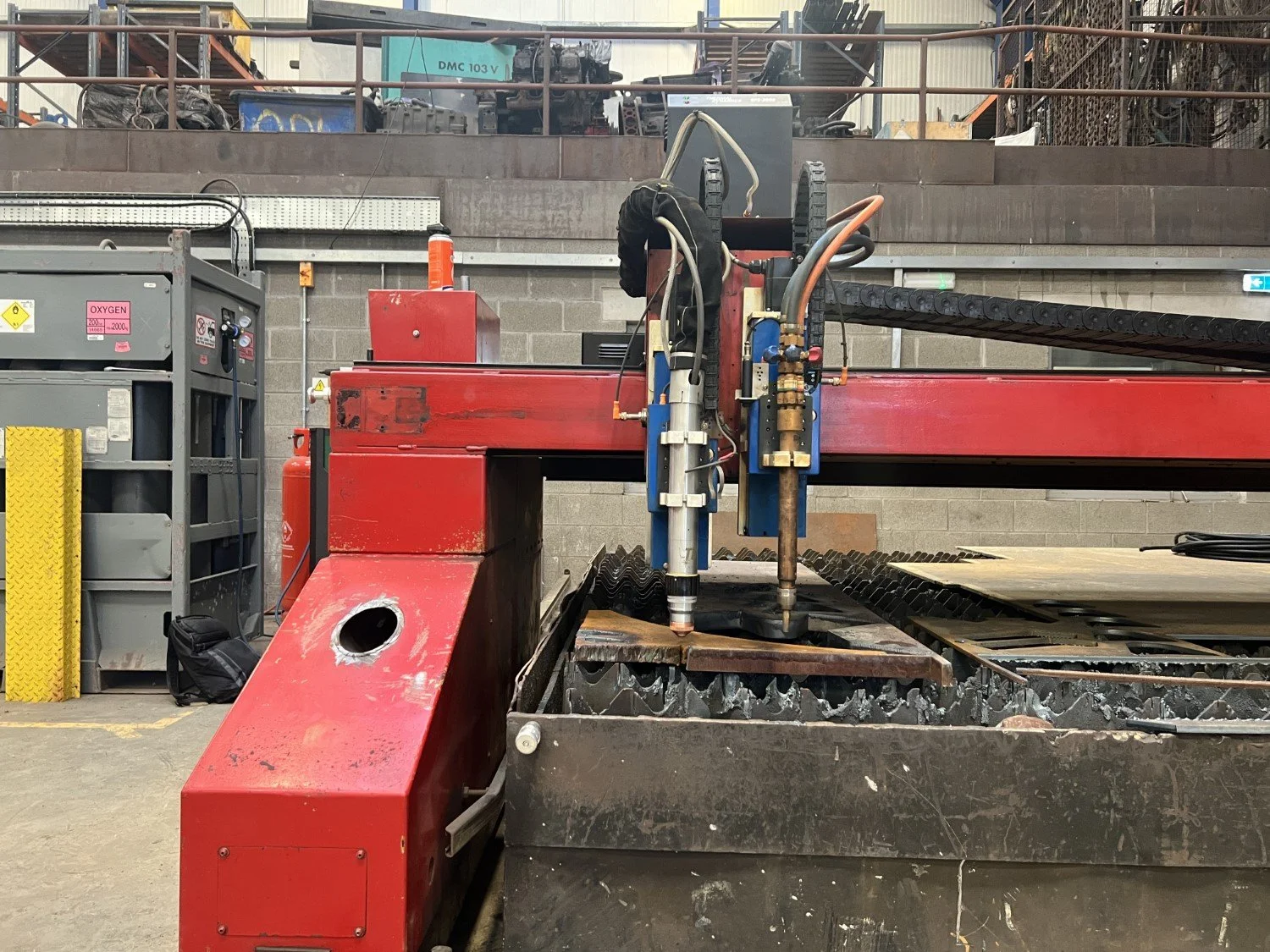

CR PLASMA Gas Cutting Breakway Sensor
The gas cutting head has the same breakaway sensor as the plasma cutting head. In case of a crash the breakway sensor triggers the machines Estop.
Dual Process Retrofit
Gas Cutting | Plasma Cutting
Click Plasma cutting - cut with Plasma.
Click Gas cutting - cut with Gas.

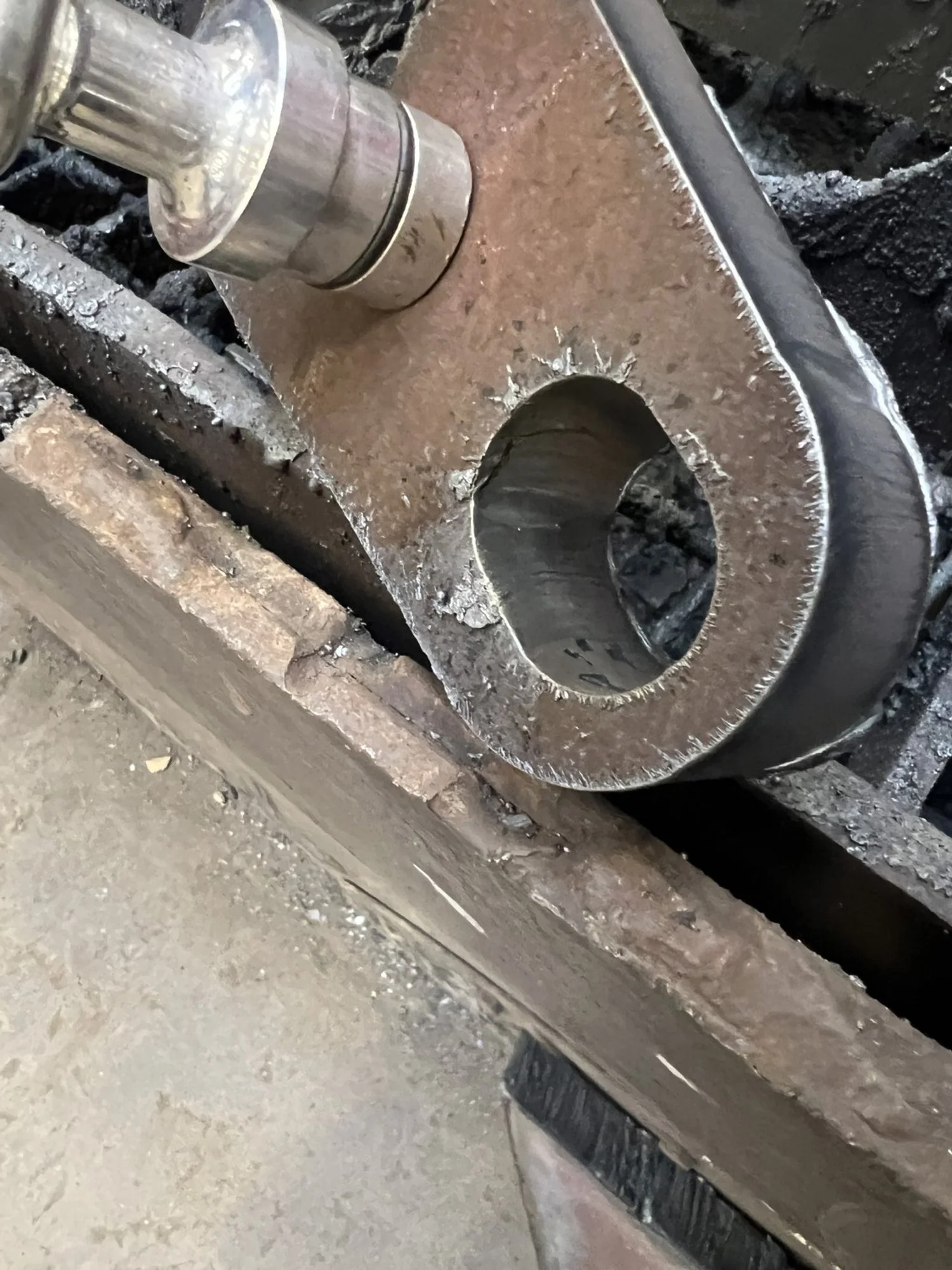

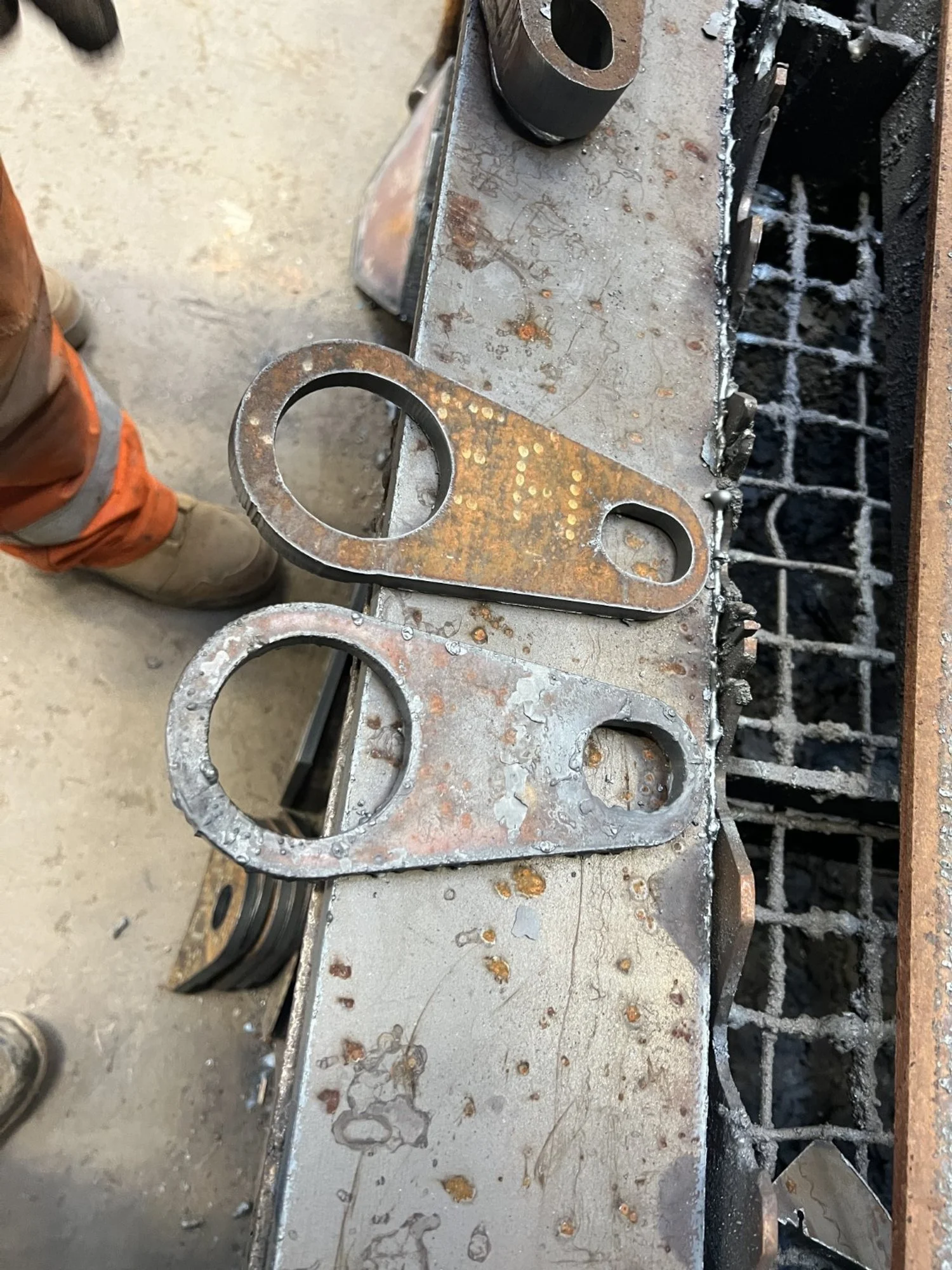

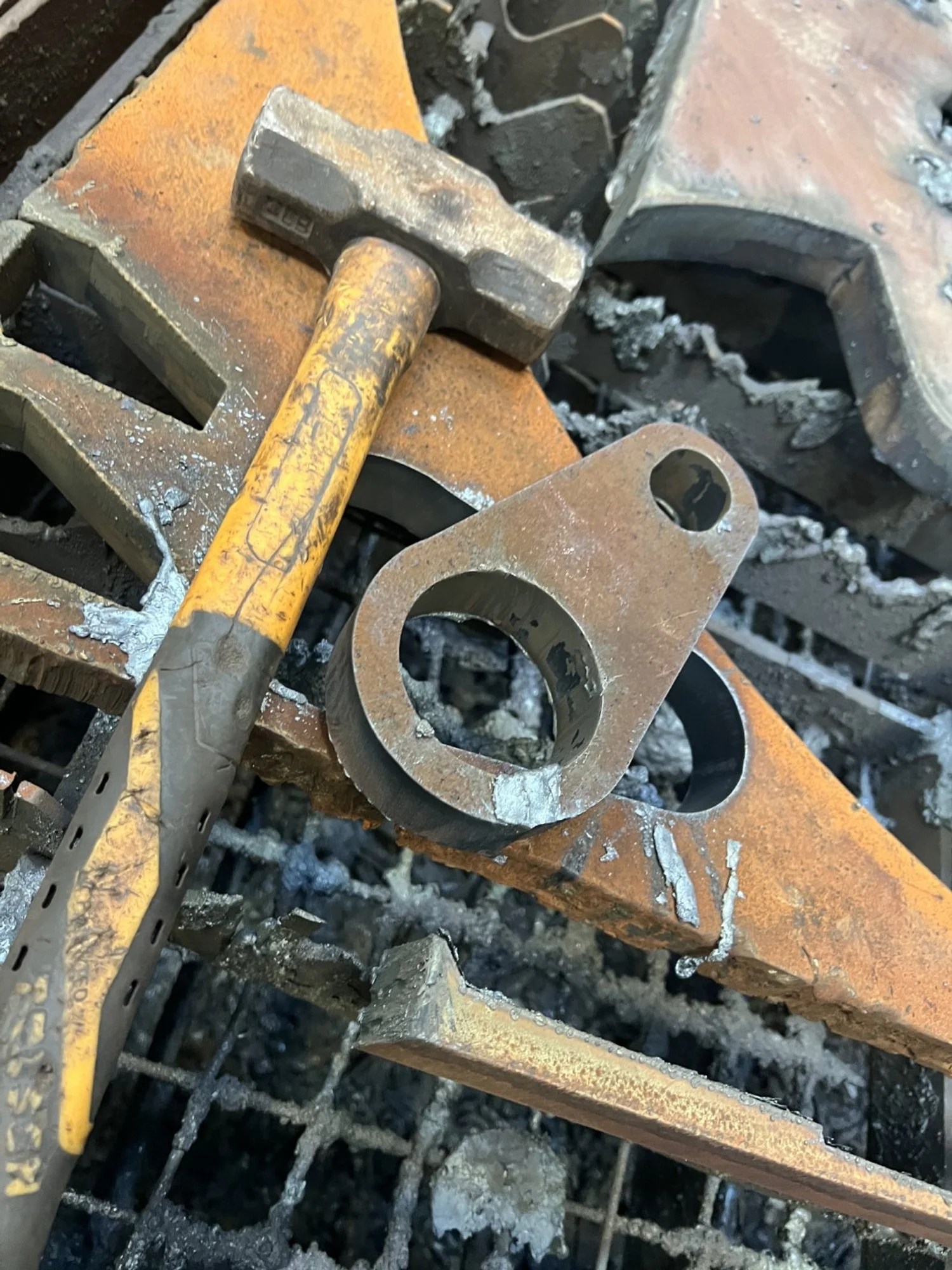

Photos
CR PLASMA DUAL PROCESS Retrofit

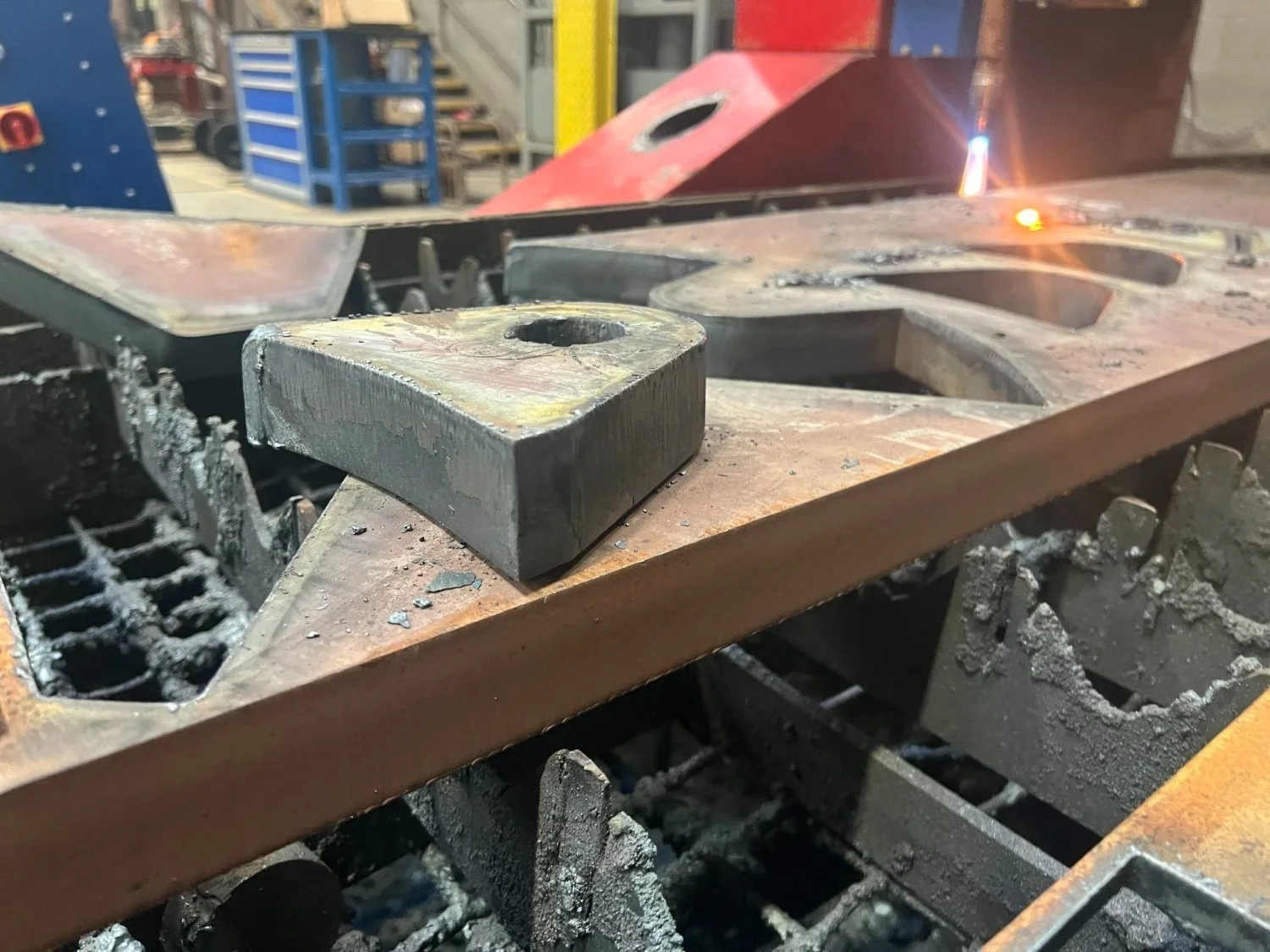

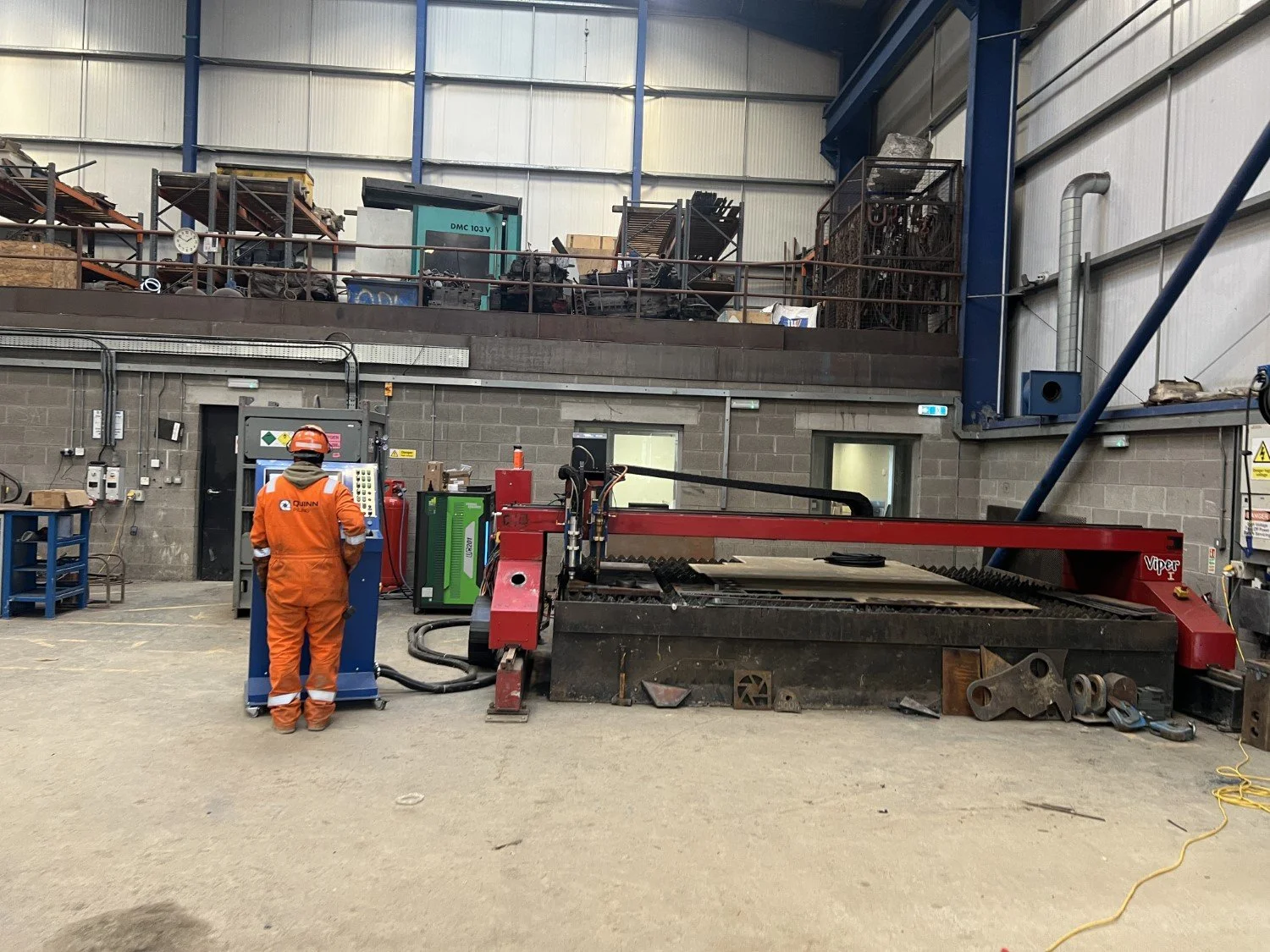

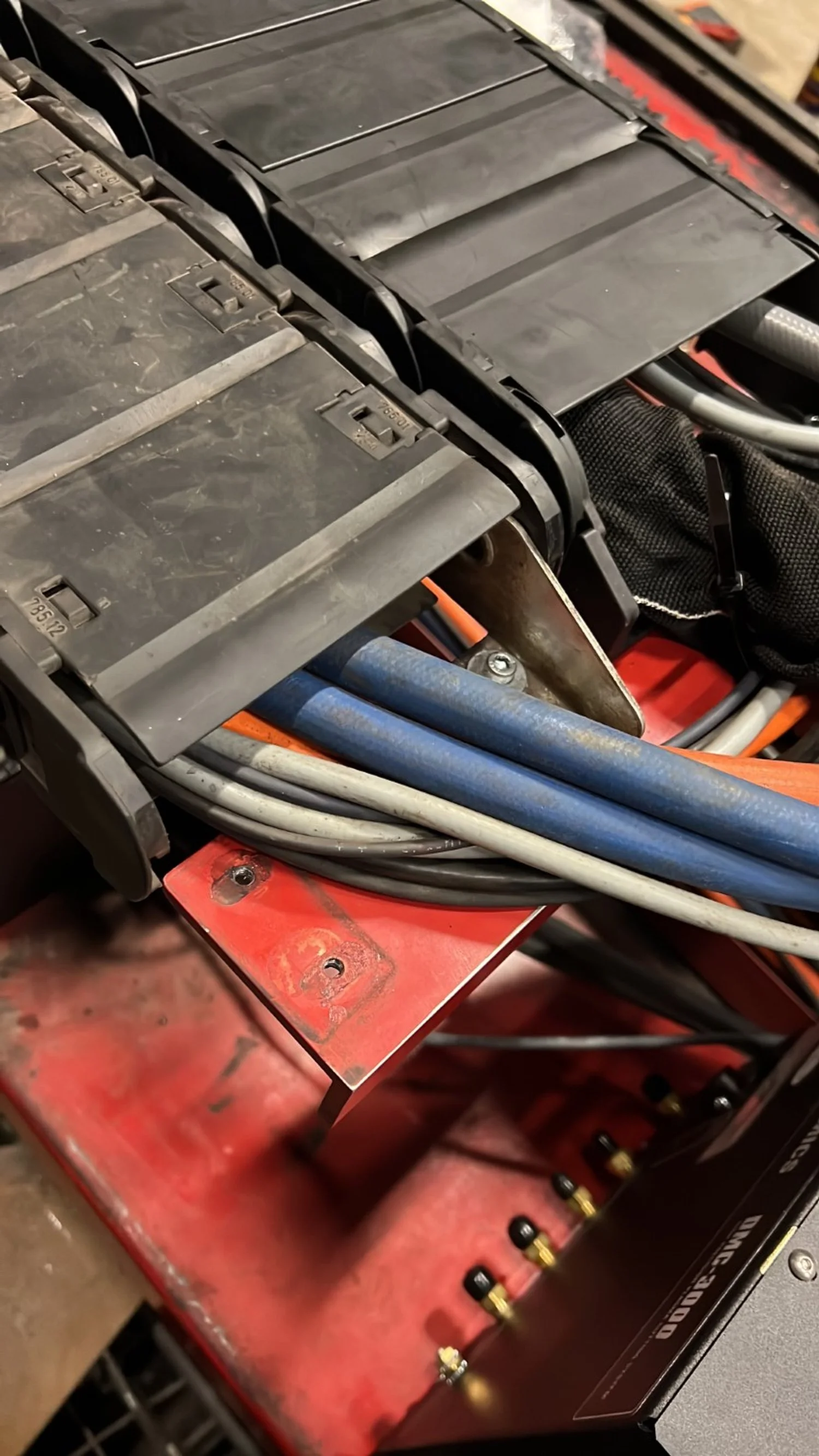

This ESPRIT viper retrofit involved reviving a second-hand ESPRIT cutting machine that was initially non-functional due to an outdated controller. The machine was limping and costing money in expensive, outdated spares.
Retrofit Process

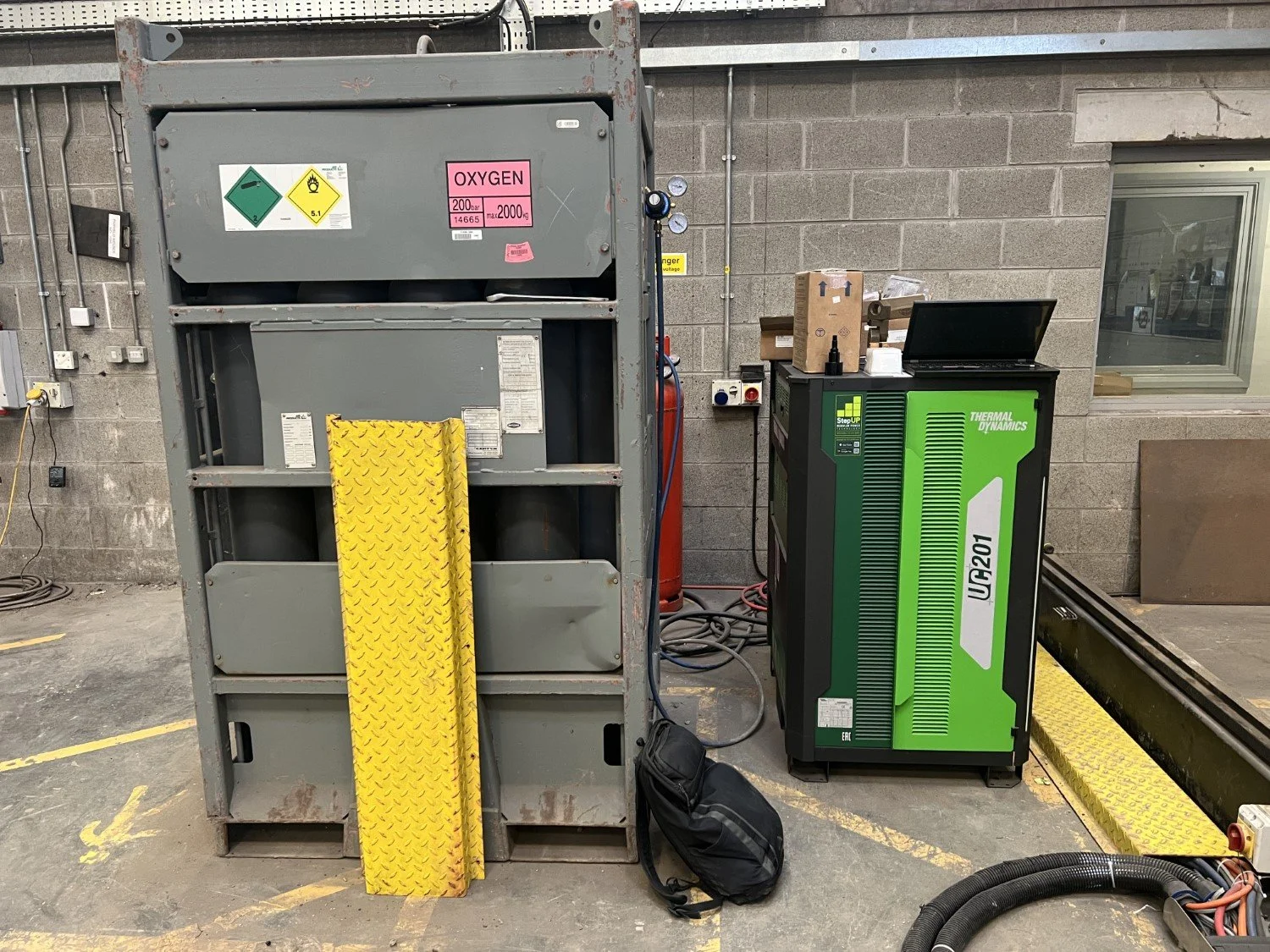

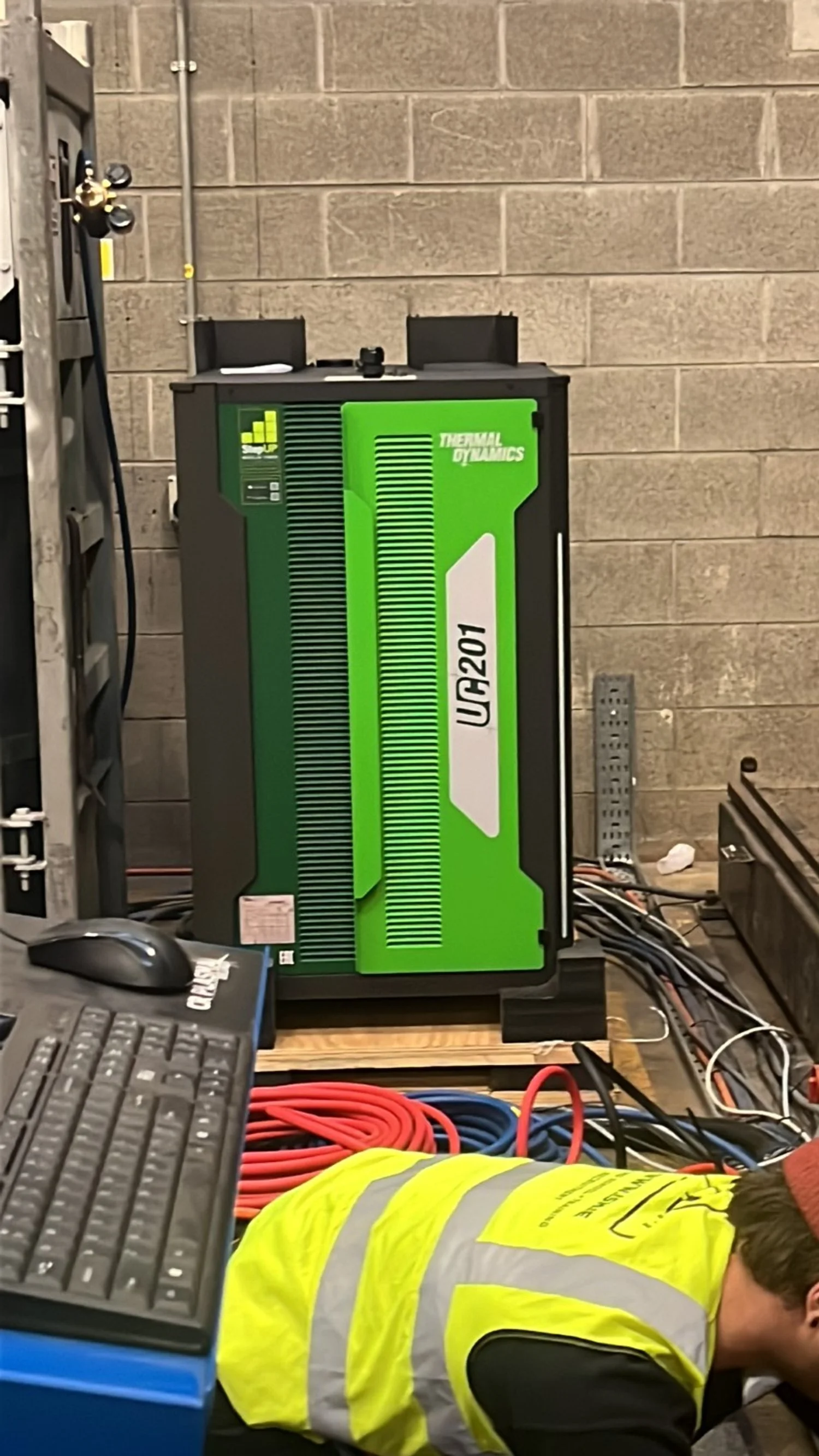

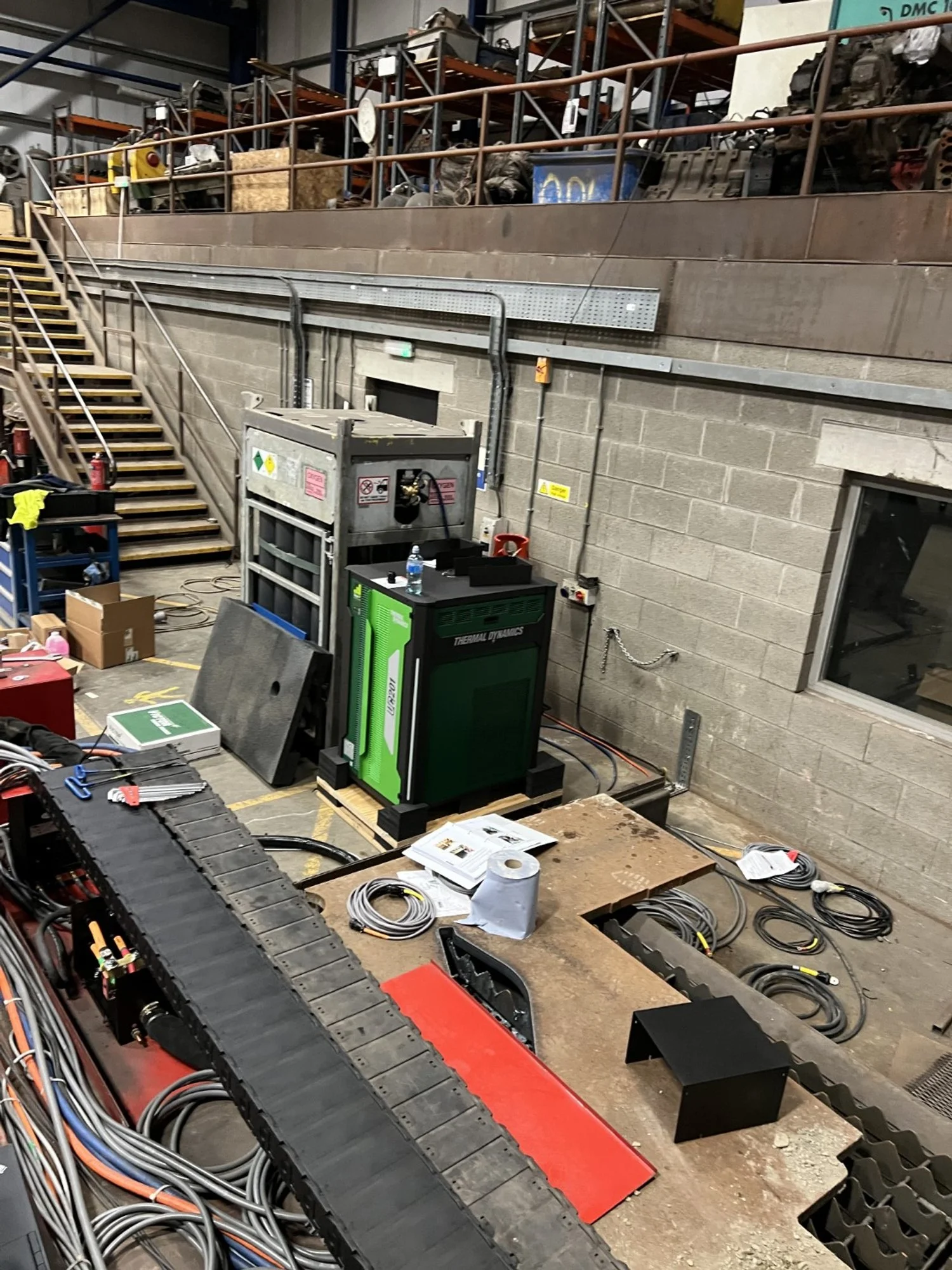

- Power Source Upgrade: The retrofit utilised a 200-amp Auto-Cut XT plasma system, aligning with the client's structural cutting needs (10-20mm plate).

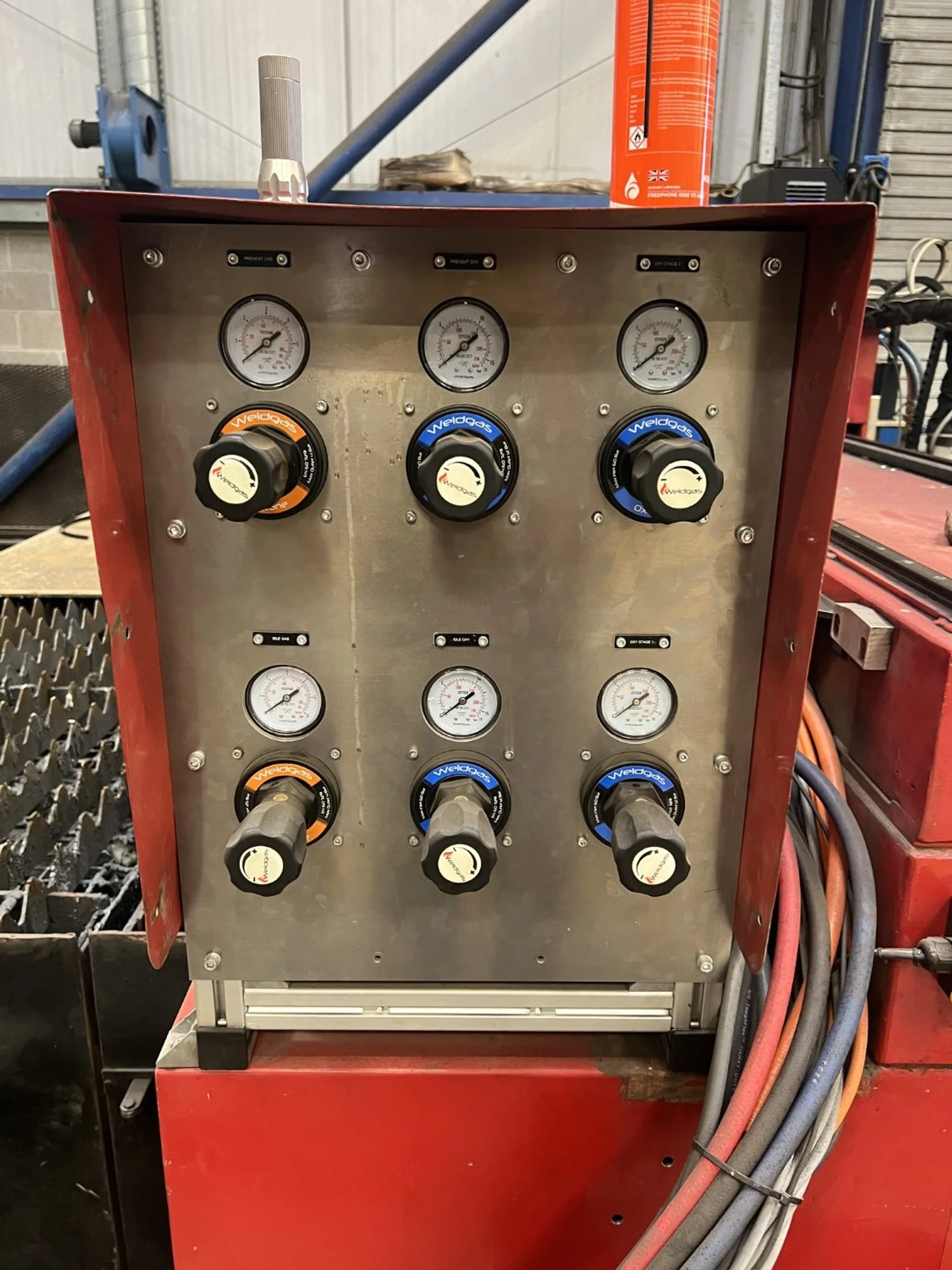

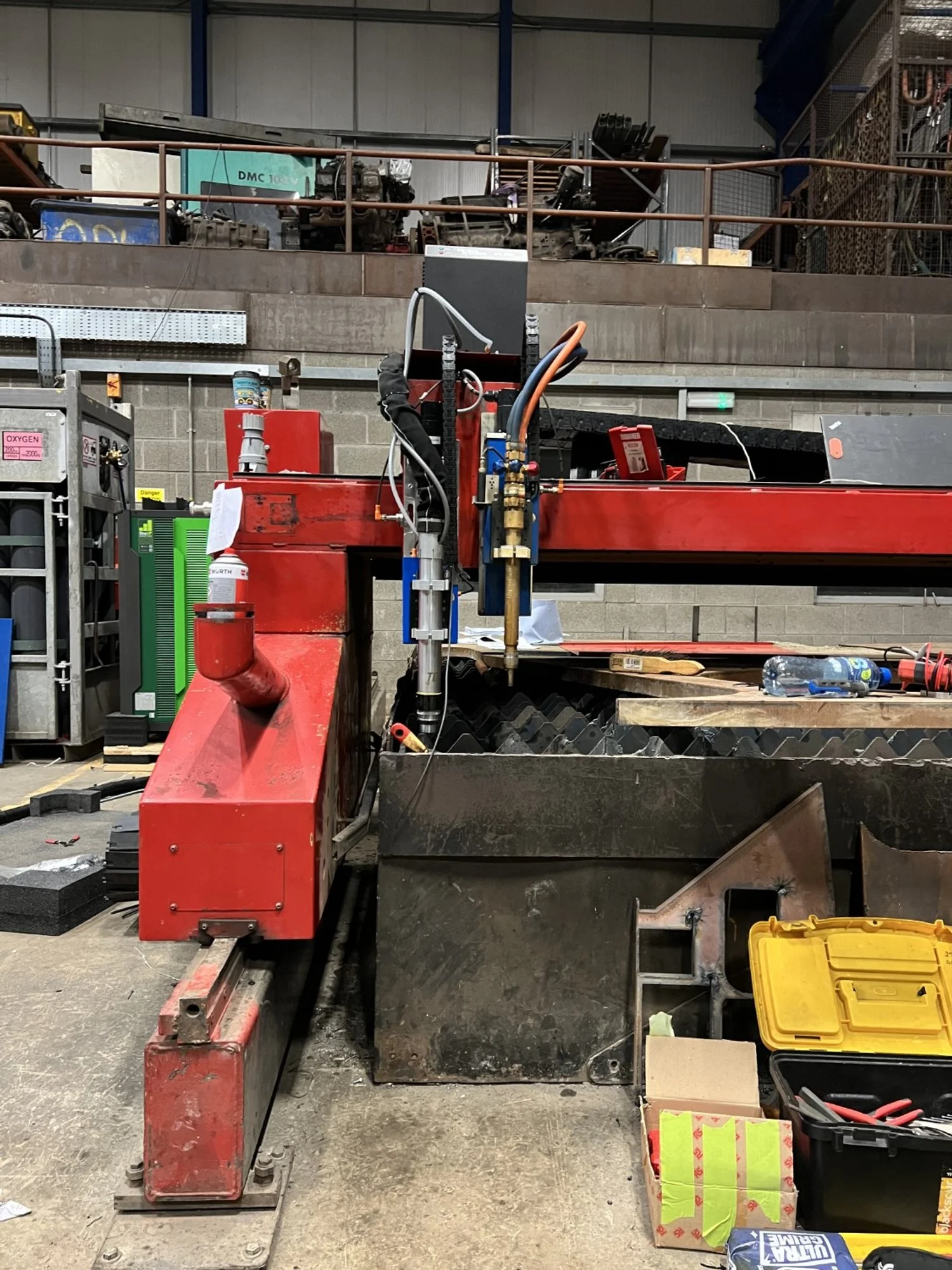

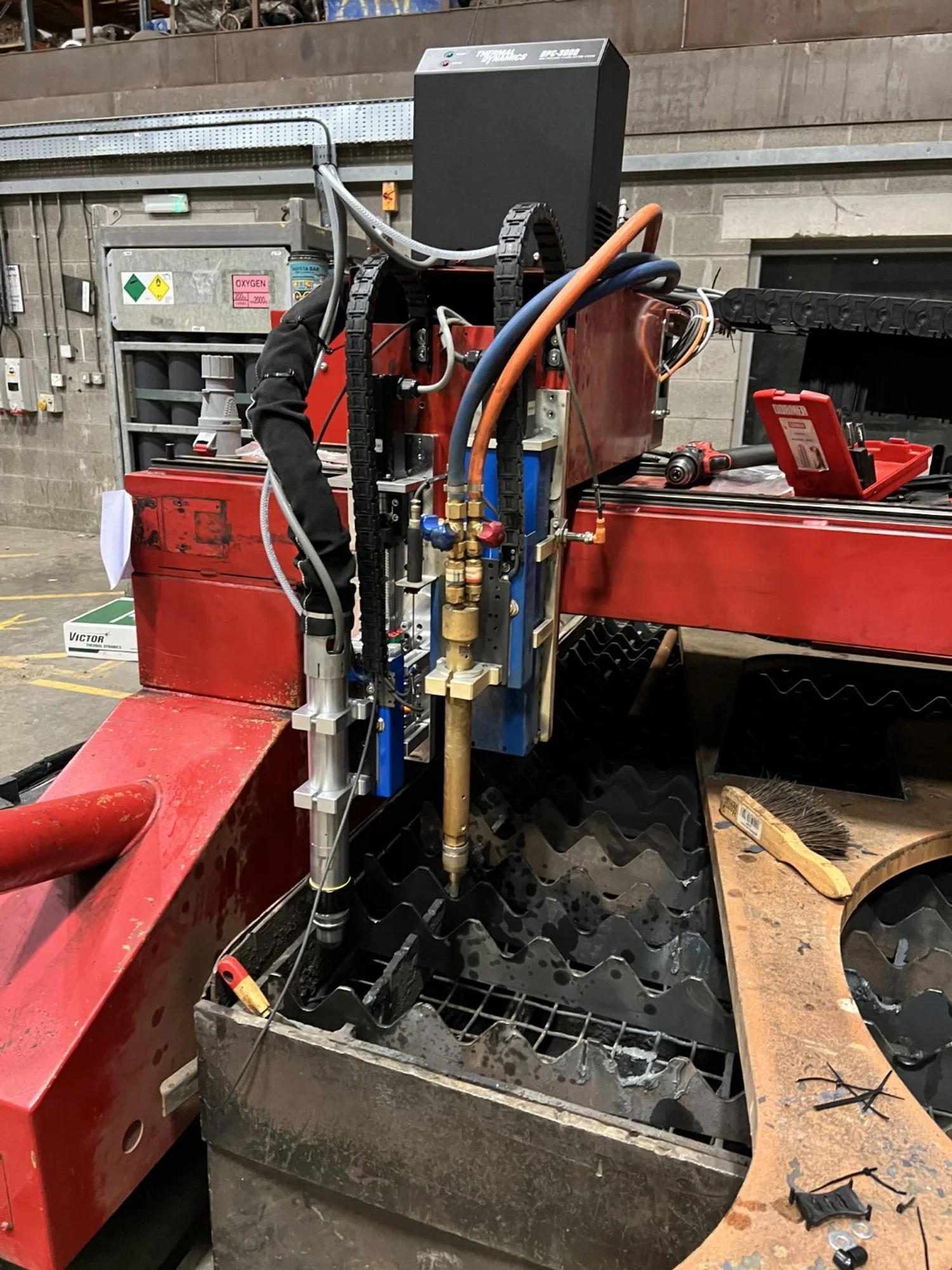

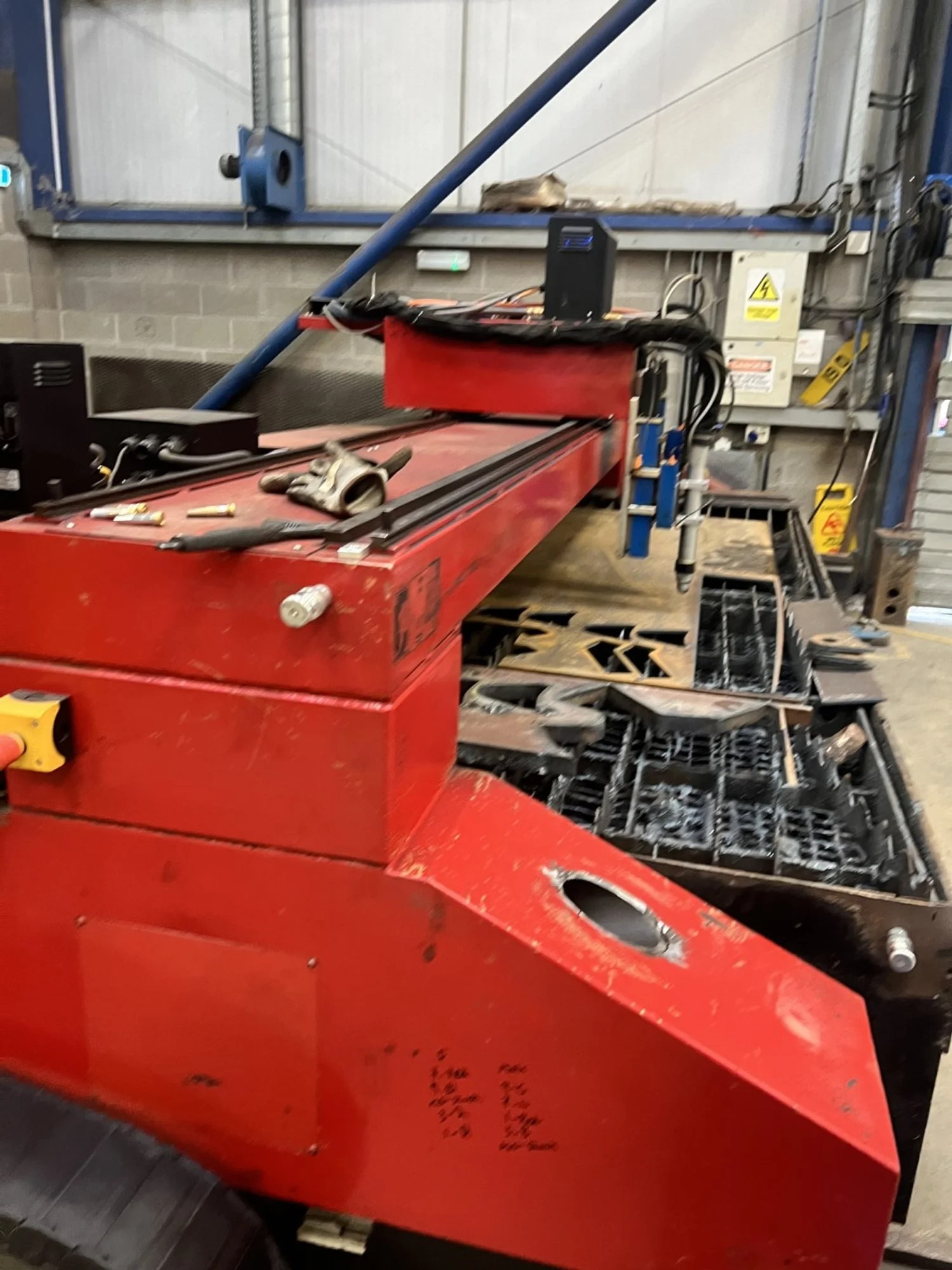

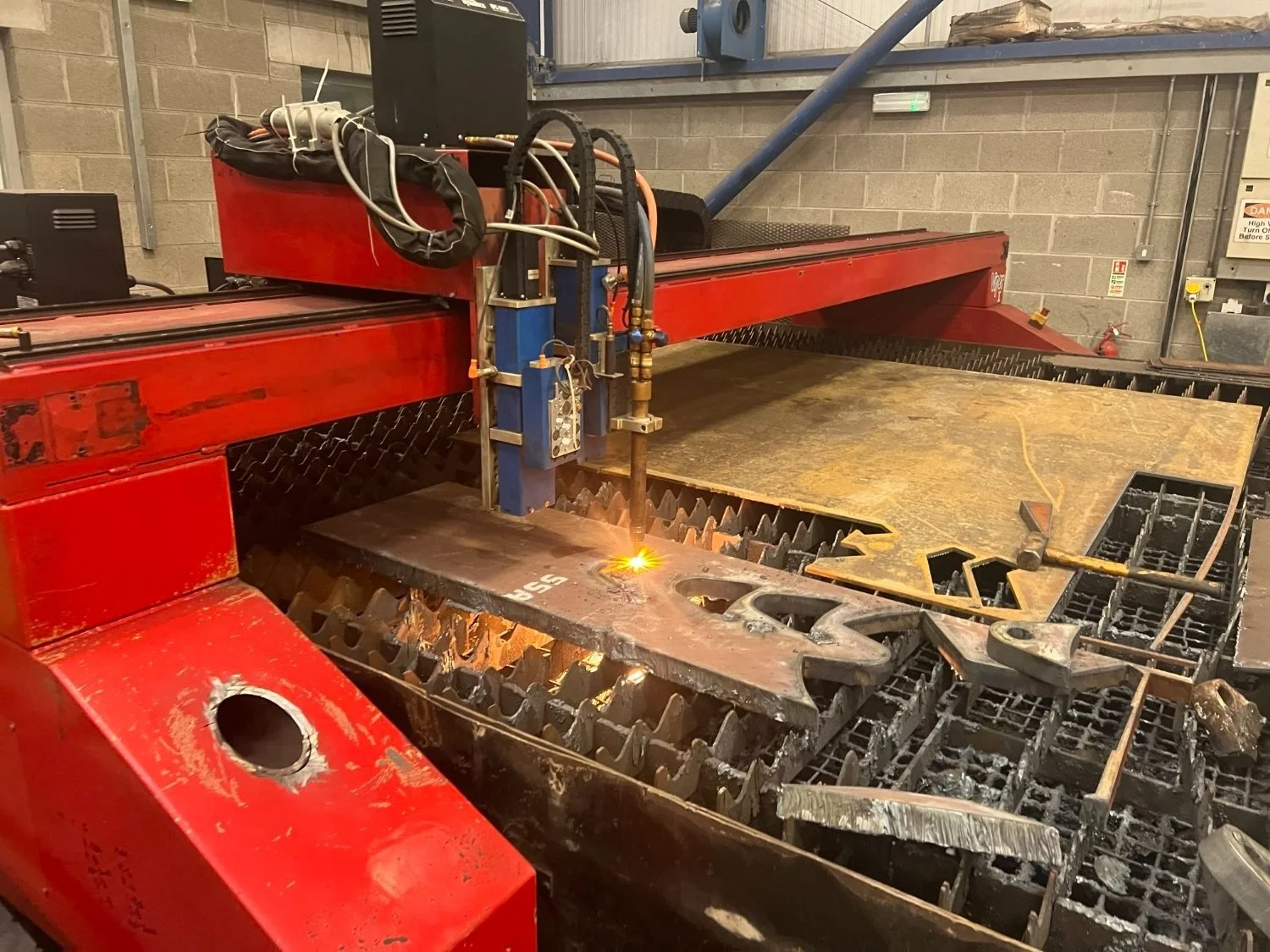

- Oxygen and Propane Gas Cutting update: The retrofit utilised a Binzle gas torch for the second Z axis for CNC Gas cutting.
- Servo Motor Overhaul: The existing brushed DC servos were outdated and expensive to maintain, so they were replaced with closed-loop AC brushless servo motors. This improved performance, reduced maintenance costs, and ensured long-term supportability.
- Mechanical Enhancements:Existing gearboxes were modified with custom interface plates to fit the new servo motors.

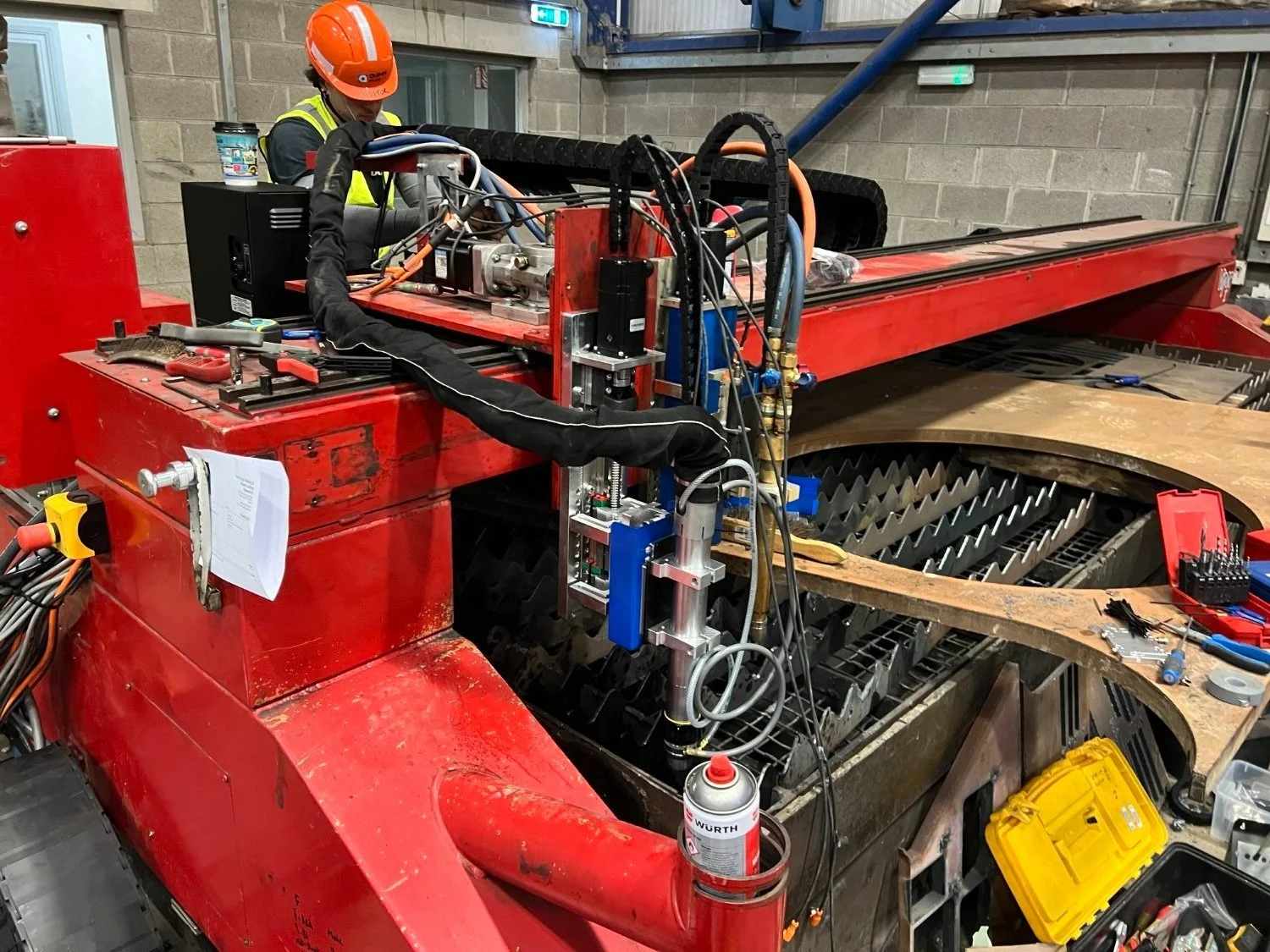

- The original Z-axis torch lifting system was replaced entirely with a CR PLASMA Z-axis system.
- New IFM induction sensors were installed for precise X, Y, and Z homing

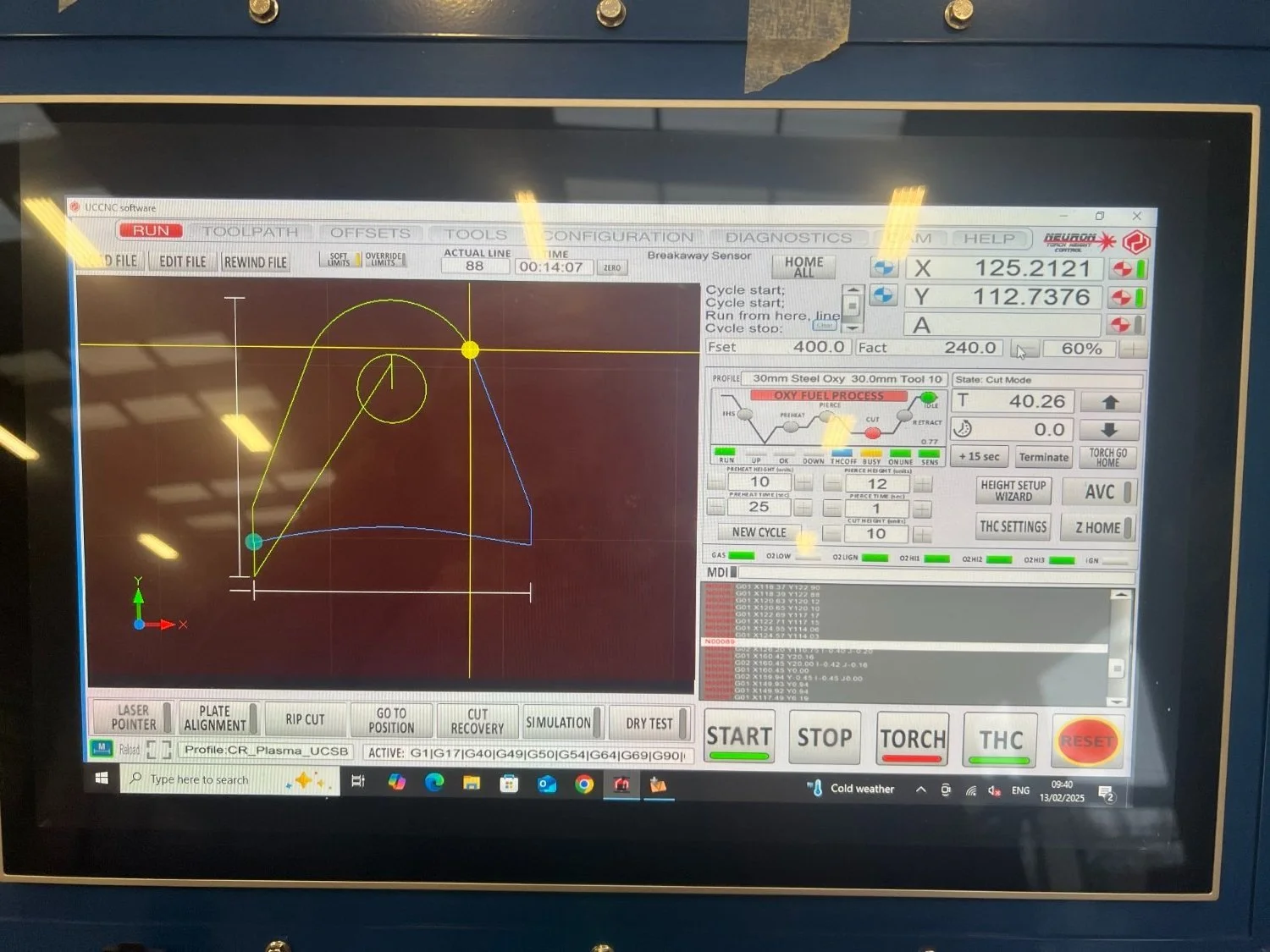

Controller System Upgrade: A CR PLASMA Controller was installed in a rolling console, featuring a high-spec, passively cooled PC with an industrial TFT touchscreen.

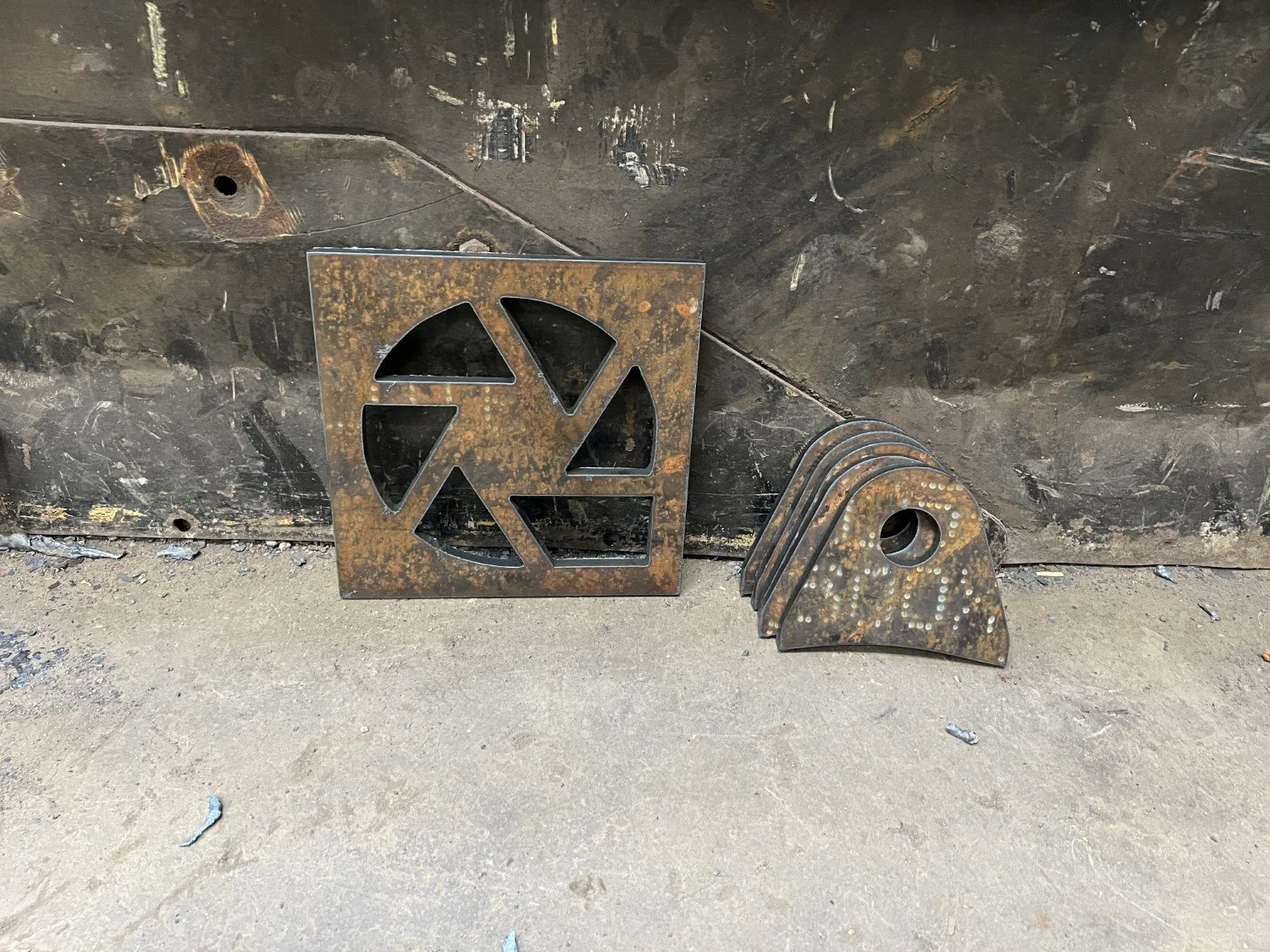

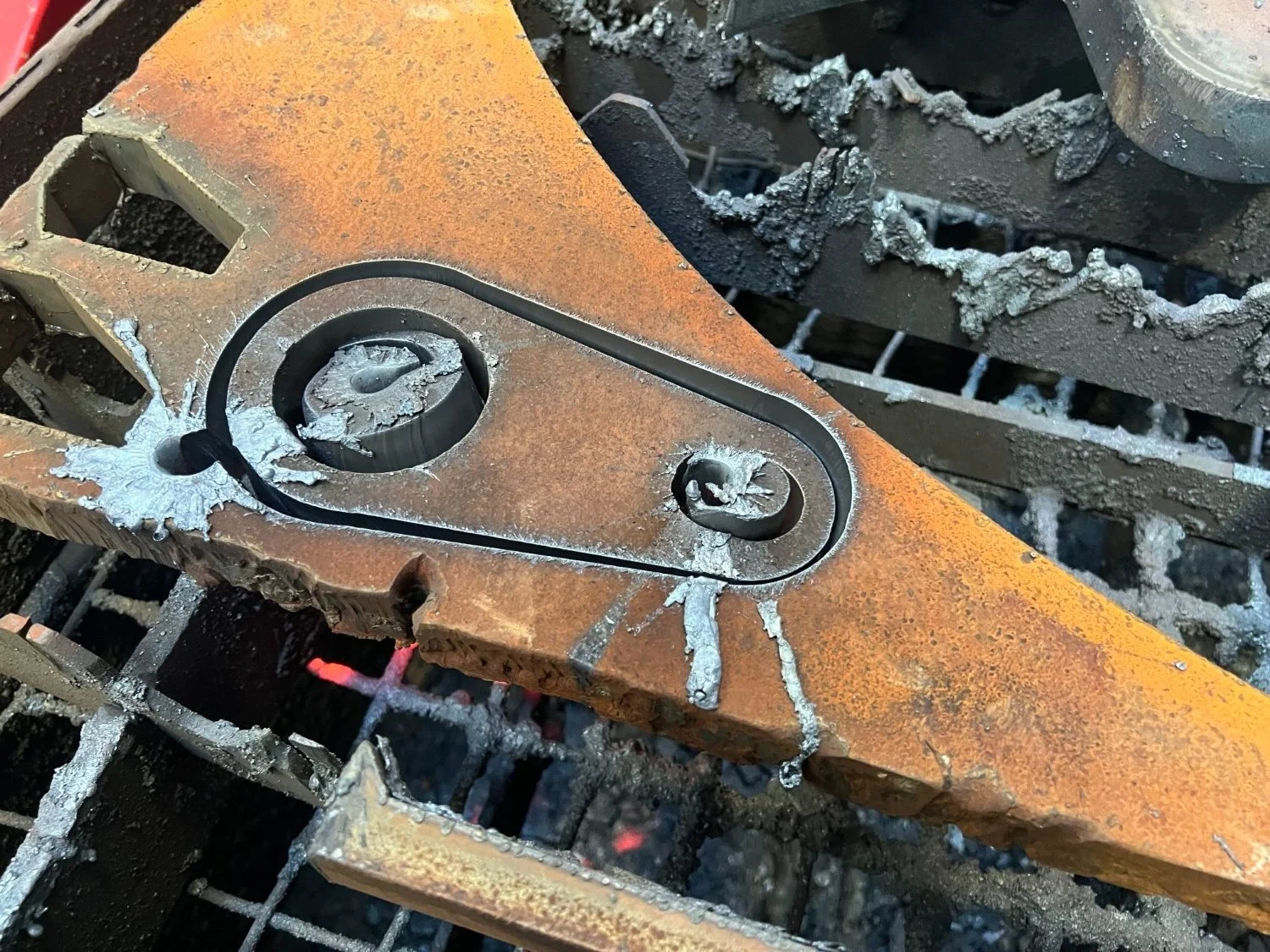

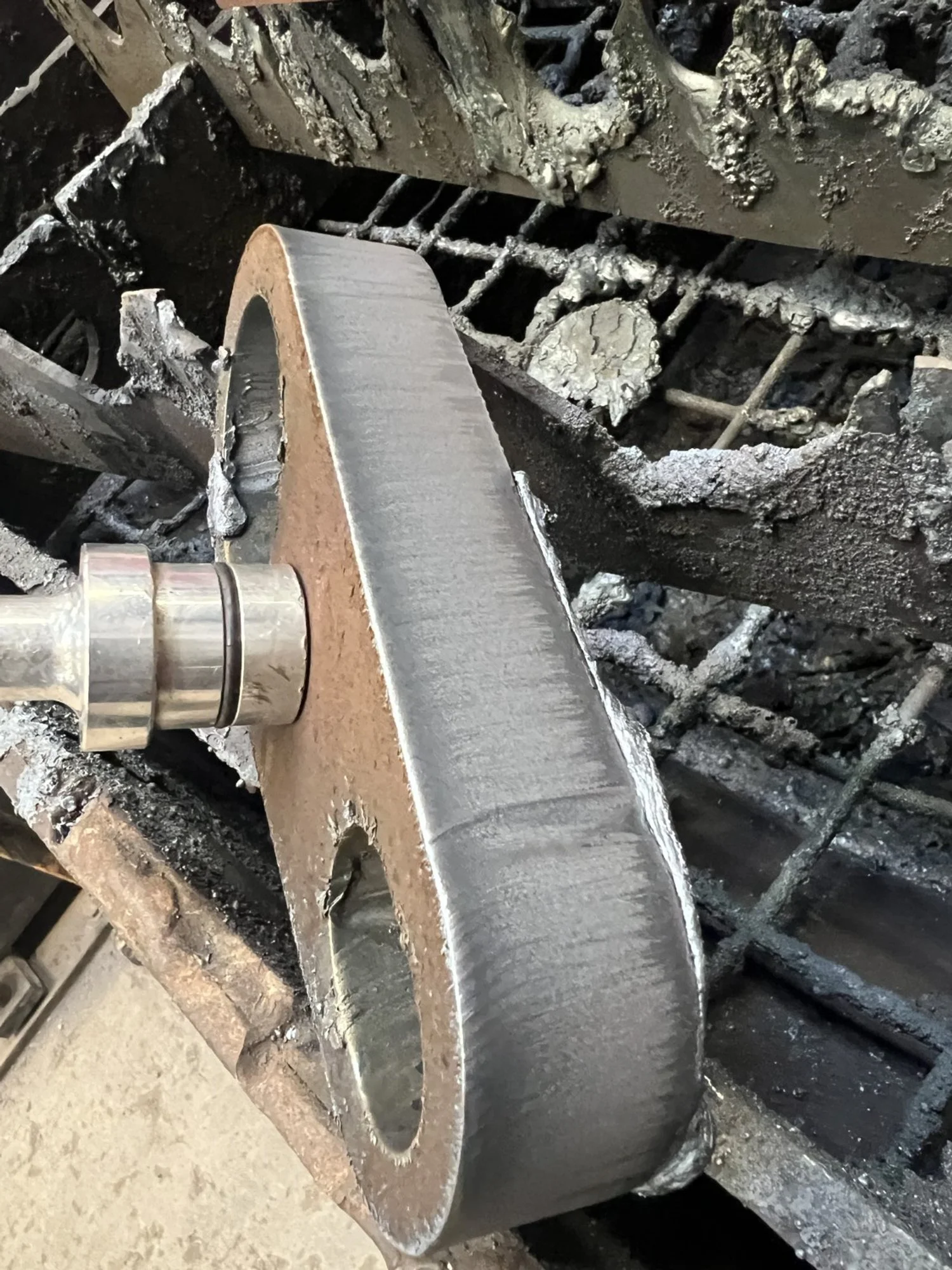

Outcome:
- The retrofitted Esprit machine now operates efficiently with modern components, reducing long-term costs.
- The machine is now fully supportable with off-the-shelf parts, ensuring affordability and easy maintenance.
- The machine is a DUAL PROCESS MACHINE - CNC PLASMA CUTTING AND CNC GAS CUTTING.
This retrofit transformed a failing system into a high-performance, cost-effective, and future-proof plasma cutting solution. 🚀
